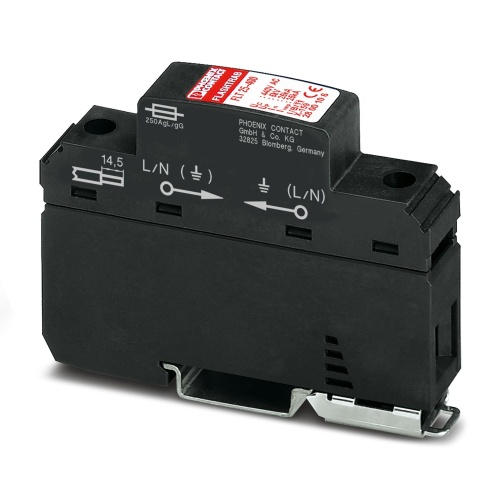

Phoenix Contact 2800106 Type 1+2 combined lightning current and surge arrester FLT 25-400
Normally In Stock
Code: 72160
FLT 25-400 Phoenix 2800106 Combination type 230/400 VAC Screw connection Combination type 1/2 protective device Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$530.03
Sale Price
$441.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2800106 A single-channel Type 1/Class I lightning current arrester features an arc chopping spark gap and has a housing width of 17.5 mm, which is equivalent to one division on the standard size chart.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Fault Warning
Multi-Stage
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
53 Volt
Nominal Discharge Current
10 Ka
Surge Protector Line Voltage
230-400 Volt
Component
Surge Arrester
Features
High discharge capacity
Downloads
Phoenix 2800106 CAD data International.dxfPhoenix 2800106 CAD data International.pdfPhoenix 2800106 CAD data International.stpPhoenix 2800106 Flyer English.pdfPhoenix 2800106 Manufacturers declaration International.pdfPhoenix 2800106 Package Slip International.pdfPhoenix 2800106 Software International.zipPhoenix 2800106 Surge Protection English.pdfPhoenix 2800106 Tender Text English.zip
