Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Panduit DNF10-250M-D Pan-Term® DNF10-250M-D Loose Piece Disconnect
Normally In Stock
Code: 721569

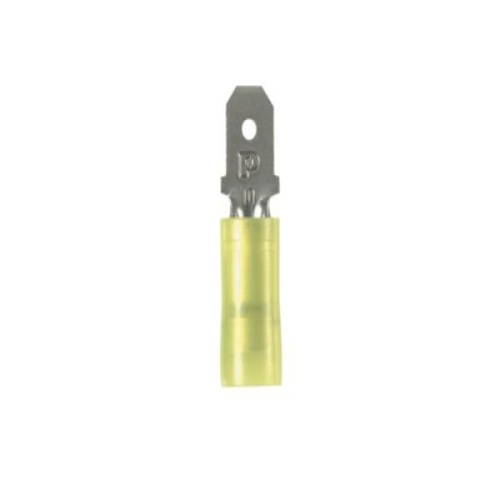

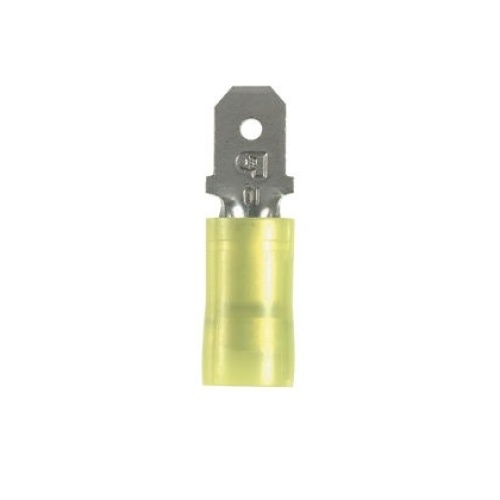

Panduit DNF10-250M-D The vibration resistant male tab disconnect is made of base metal copper and nickel-plated. It is barrel insulated in a yellow, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 1.03" (26.2 mm) long and 0.25" (6.4 mm) wide. The disconnect has a standard barrel configuration and an insulation grip sleeve barrel. It comes in boxes of 500.
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM PANDUIT FOR PRODUCT TO SHIP
$0.65
Sale Price
$0.54
MUST BUY IN PACKS OF 500
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Panduit DNF10-250M-D The vibration resistant male tab disconnect is made of base metal copper and nickel-plated. It is barrel insulated in a yellow, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 1.03" (26.2 mm) long and 0.25" (6.4 mm) wide. The disconnect has a standard barrel configuration and an insulation grip sleeve barrel. It comes in boxes of 500.
Specifications
Terminal for Wire Gauge
12-10 AWG
Component
Disconnect Terminal
Manufacturer
Panduit
Features
Male tab couples with (all 0.250 x 0.032) female disconnects
Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength
UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
Rated up to 600 V
