Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

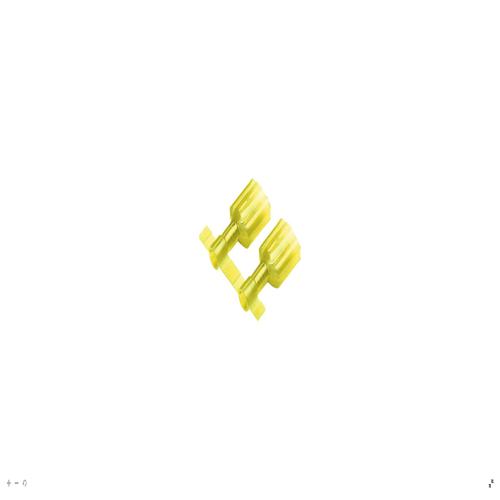

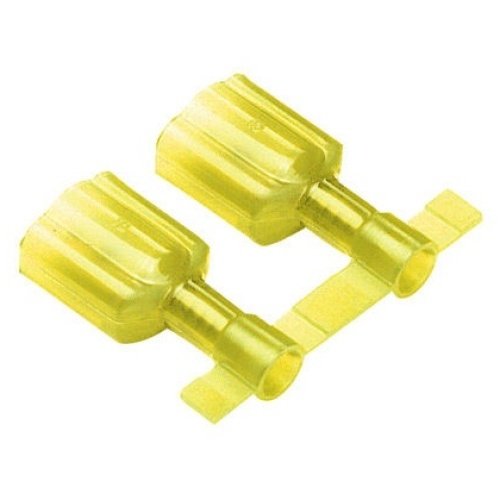

Panduit DNF10-250FIMB-K Reel Smart™ DNF10-250FIMB-K Disconnects, Yellow, Vinyl, 10-12 AWG, 0.25" Tab
Normally In Stock
Code: 721568
Panduit DNF10-250FIMB-K The vibration resistant male tab disconnect is made of copper and is nickel-plated. It is fully insulated in a yellow, nylon housing. It has a tab size of 0.250 x 0.032"" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.96" (24.4 mm) long and 0.22" (5.6 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in reels of a 1000 pieces.
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM PANDUIT FOR PRODUCT TO SHIP
$0.73
Sale Price
$0.61
MUST BUY IN PACKS OF 1000
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Panduit DNF10-250FIMB-K The vibration resistant male tab disconnect is made of copper and is nickel-plated. It is fully insulated in a yellow, nylon housing. It has a tab size of 0.250 x 0.032"" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.96" (24.4 mm) long and 0.22" (5.6 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in reels of a 1000 pieces.
Specifications
Terminal for Wire Gauge
12-10 AWG
Component
Disconnect Terminal
Manufacturer
Panduit
Features
Standard Met: UL 310 Listed, UL Listed 20H3 E78522
CSA Certified LR31212, C22.2 No.153
Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Male tab couples with (all 0.250 x 0.032) female disconnects
Fully insulated design provides protection from electrical shorts
Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
UL and CSA rated up to 600 V per UL 310
