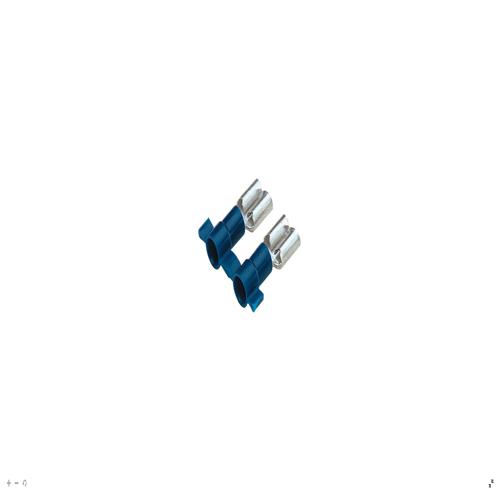

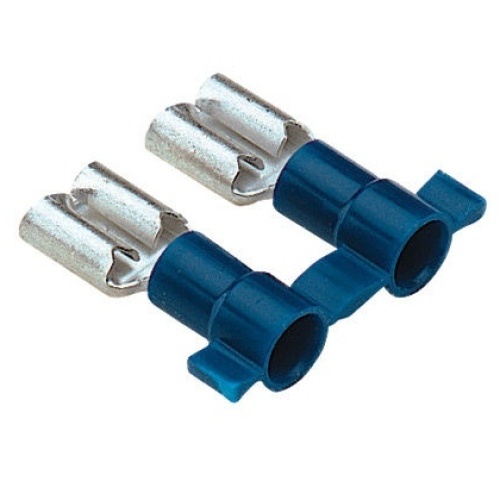

Panduit DV14-187B-3K Reel Smart™ DV14-187B-3K Disconnects on a Reel
Normally In Stock
Code: 721554
Panduit DV14-187B-3K The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.77" (19.6 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000.
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM PANDUIT FOR PRODUCT TO SHIP
$0.47
Sale Price
$0.39
MUST BUY IN PACKS OF 3000
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Panduit DV14-187B-3K The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.77" (19.6 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000.
Specifications
Terminal for Wire Gauge
16-14 AWG
Component
Disconnect Terminal
Manufacturer
Panduit
Features
Standard Met: UL 310 Listed, UL Listed 20H3 E78522
CSA Certified LR31212, C22.2 No.153
Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Internal barrel serrations assure good wire contact and maximum tensile strength
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C)
UL and CSA rated up to 600 V per UL 310, where applicable
