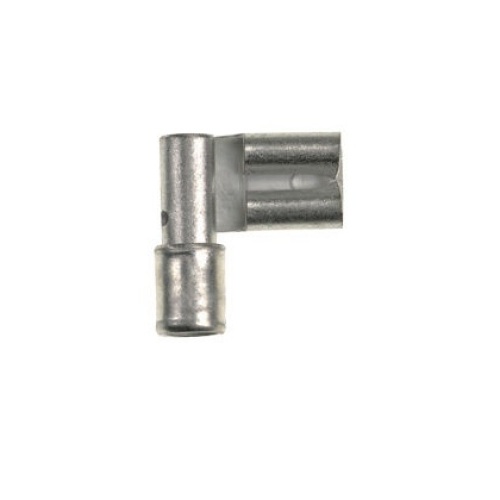

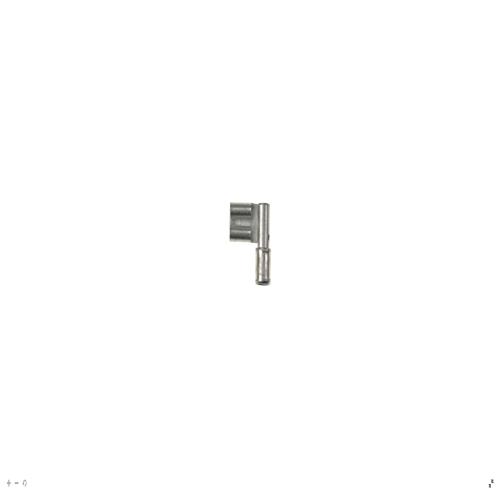

Panduit DR14-250-M Pan-Term® DR14-250-M Disconnect, 90°, Bare, 14-16 AWG, 0.25" Tab, PK1000
Normally In Stock
Code: 721553
Panduit DR14-250-M The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.57" (14.5 mm) long and 0.3" (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in boxes of 1000.
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM PANDUIT FOR PRODUCT TO SHIP
$0.52
Sale Price
$0.43
MUST BUY IN PACKS OF 1000
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Panduit DR14-250-M The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.57" (14.5 mm) long and 0.3" (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in boxes of 1000.
Specifications
Terminal for Wire Gauge
16-14 AWG
Component
Disconnect Terminal
Manufacturer
Panduit
Features
Standard Met: UL 310 Listed, UL Listed 20H3 E78522
CSA Certified LR31212, C22.2 No.153
Right angle design for use in limited space applications
Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Sleeved barrel helps to facilitate high mechanical and electrical performance when crimping
Barrel of terminal internally beveled to provide quick and easy wire insertion
Internal barrel serrations assure good wire contact and maximum tensile strength
Maximum recommended operating temperature 302°F (150°C)
UL and CSA rated up to 2000 V per UL 310, where applicable
