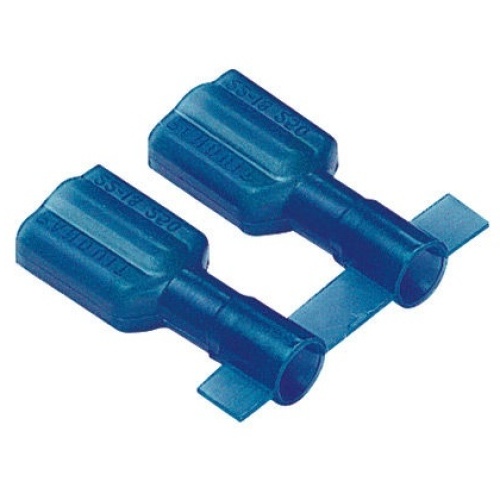

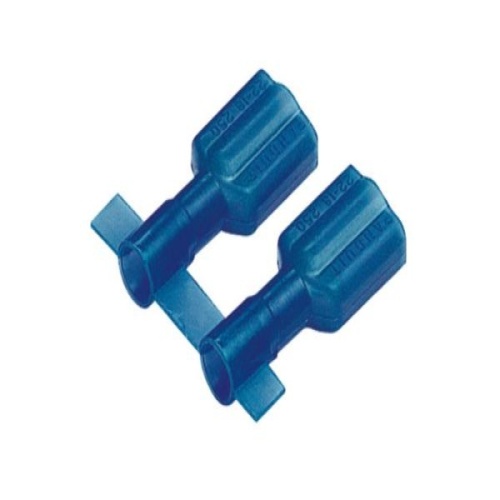

Panduit DNF14-206FIB-3K Reel Smart™ DNF14-206FIB-3K Disconnect, Blue, Nylon, 14-16 AWG
Normally In Stock
Code: 721527
Panduit DNF14-206FIB-3K The vibration resistant female disconnect is made of brass and housed in blue, fully insulated nylon standard receptacle housings. It has a tab size of 0.187/0.205 x 0.020" (4.8/5.2 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.78" (19.8 mm) long and 0.31" (7.9 mm) wide. The disconnect is tin-plated, has a funnel entry configuration and insulation grip sleeve barrel. It comes in bottled packages of 100.
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM PANDUIT FOR PRODUCT TO SHIP
$0.28
Sale Price
$0.23
MUST BUY IN PACKS OF 3000
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Panduit DNF14-206FIB-3K The vibration resistant female disconnect is made of brass and housed in blue, fully insulated nylon standard receptacle housings. It has a tab size of 0.187/0.205 x 0.020" (4.8/5.2 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.78" (19.8 mm) long and 0.31" (7.9 mm) wide. The disconnect is tin-plated, has a funnel entry configuration and insulation grip sleeve barrel. It comes in bottled packages of 100.
Specifications
Terminal for Wire Gauge
16-14 AWG
Component
Disconnect Terminal
Manufacturer
Panduit
Features
Standard Met: UL 310 Listed, UL Listed 20H3 E78522
CSA Certified LR31212, C22.2 No.153
Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Fully insulated design provides protection from electrical shorts
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
UL Flammability, maximum insulation temperature 221°F (105°C)
per UL 310
