Code: 721493

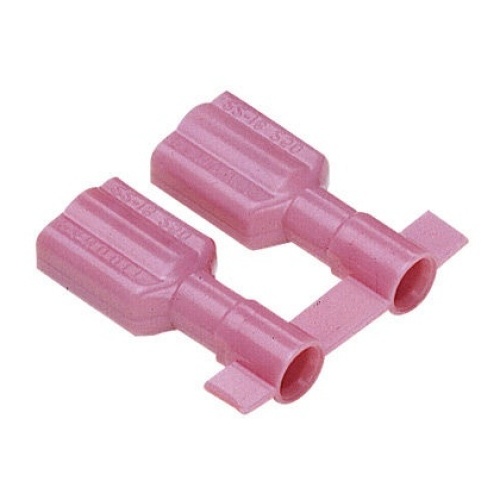

Panduit DPF18-111FIB-3K Reel Smart™ DPF18-111FIB-3K Disconnects on a Reel
Normally In Stock
Panduit DPF18-111FIB-3K The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.110 x 0.020" (2.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.71" (18 mm) long and 0.19" (4.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000.
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM PANDUIT FOR PRODUCT TO SHIP
*NON-CANCELLABLE, NON-RETURNABLE*
$0.38
Sale Price
$0.32
MUST BUY IN PACKS OF 3000
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Panduit DPF18-111FIB-3K The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.110 x 0.020" (2.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.71" (18 mm) long and 0.19" (4.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000.
Specifications
Terminal for Wire Gauge
22-18 AWG
Component
Disconnect Terminal
Manufacturer
Panduit
Features
Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
Fully insulated design provides protection from electrical shorts
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
UL Flammability UL 94V-2, maximum insulation temperature 221°F (105°C)
UL and CSA rated up to 600 V per UL 310, where applicable. For Use With: Crimp press with CA9 (CD9-12A) or CA-800EZ (CD-800-12) applicator
