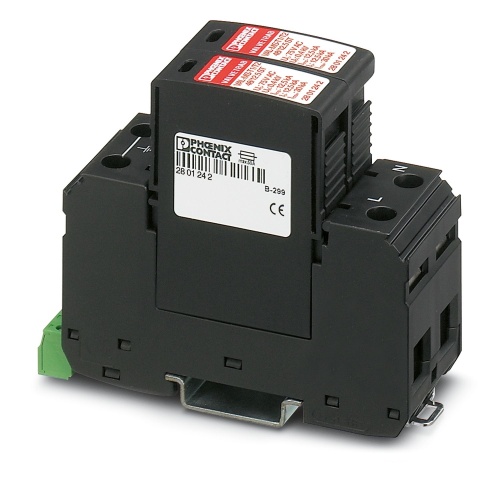

Phoenix Contact 2801533 Lightning/surge arrester type 1/2 VAL-MS-T1/T2 48/12.5/1+1V-FM
Normally In Stock
Code: 72135
VAL-MS-T1/T2 48/12.5/1+1V-FM Phoenix 2801533 Arrester combination 60 VAC ±10 % Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Lightning/surge arrester type 1/2 Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$469.09
Sale Price
$390.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

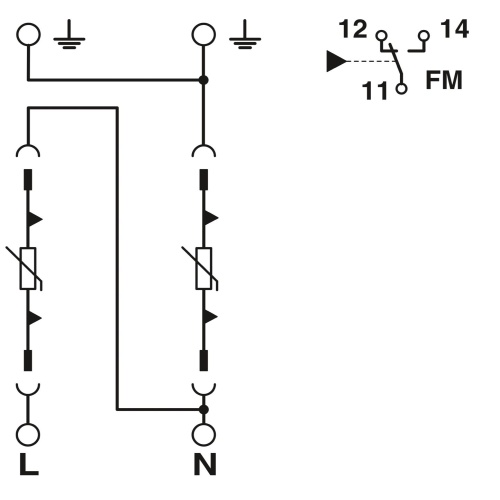

Phoenix Contact 2801533 A plug-in lightning/surge arrester designed for use in 48V DC systems features a varistor-based protection mechanism that provides reliable protection against lightning and surge currents, eliminating the need for risk assessments associated with higher levels of protection such as III and IV. This device also includes a remote indication contact to signal when it is activated or needs maintenance, making it suitable for safe operation in 48V DC applications with a grounded return conductor.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Maximum Continous Voltage
30 Volt
Nominal Discharge Current
5 Ka
Surge Protector Line Voltage
60 Volt ±10 %
Component
Surge Arrester
Features
Surge protection for (-) 48 V DC in lightning protection level III and IV due to discharge capacity of 12.5 kA per position
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
Vibration-resistant latching ensures the plug remains firmly in place
Downloads
Phoenix 2801533 CAD data International.dxfPhoenix 2801533 CAD data International.pdfPhoenix 2801533 CAD data International.stpPhoenix 2801533 Flyer English.pdfPhoenix 2801533 Manufacturers declaration English.pdfPhoenix 2801533 Manufacturers declaration International.pdfPhoenix 2801533 Package Slip International.pdfPhoenix 2801533 Product Information English.pdfPhoenix 2801533 Software International.zipPhoenix 2801533 Surge Protection English.pdfPhoenix 2801533 Tender Text English.zip
