Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 720978

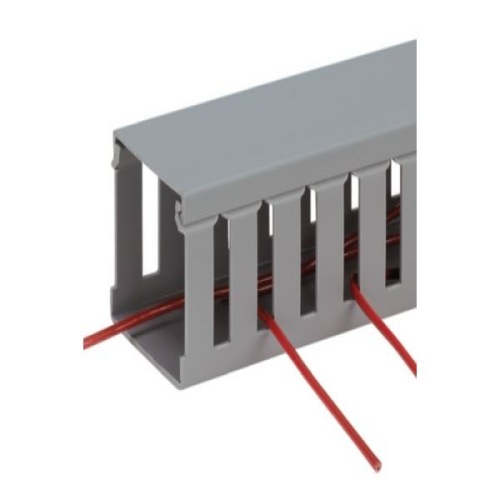

Panduit G2X3LG6-A Panduct® G2X3LG6-A Base Wiring Duct
Normally In Stock
Panduit G2X3LG6-A The G2X3LG6-A Panduct Lead-Free PVC Wide Slot Adhesive Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Adhesive and mounting holes provided. 2.0" x 3.0" (50.8 mm x 76.2 mm) and 6' (1.8 m) long. Cover sold separately. Color Light Gray.
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM PANDUIT FOR PRODUCT TO SHIP
*NON-CANCELLABLE, NON-RETURNABLE*
$8.93
Sale Price
$7.44
MUST BUY IN PACKS OF 60 (PRICE PER FOOT)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Panduit G2X3LG6-A The G2X3LG6-A Panduct Lead-Free PVC Wide Slot Adhesive Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Adhesive and mounting holes provided. 2.0" x 3.0" (50.8 mm x 76.2 mm) and 6' (1.8 m) long. Cover sold separately. Color Light Gray.
Specifications
Wire Duct Width
2.25"
Wire Duct Composition
PVC
Component
Wire Duct
Wire Duct Color
Light Gray
Wire Duct Style
Wide Slot Wiring Duct
Manufacturer
Panduit
Wire Duct Height
3.12"
Features
Application : Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
Standard Met: RoHS Compliant, UL Recognized, CE Compliant
CSA Approved
Note: Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation.
Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals.
Downloads
Panduct ® Type C Wiring Duct Cover with Protective Film Spec Sheet WDSP28--WW-ENG.zipPart Drawing - DWG - 36897-706-R2(G2X3)-200.zipPart Drawing - DWG - 36897-706_R2(G2X3).zipPart Drawing - DXF - 36897-706-R2(G2X3)-200.zipPart Drawing - DXF - 36897-706_R2(G2X3).zipSpecification Sheet.pdfWide Slot Wiring Duct.zipWiring Duct Product Selection Guide.zip
