TTC-6P-3-EX-24DC-UT-I Phoenix Contact 1064665 Surge protection for information technology Surge protection device
TTC-6P-3-EX-24DC-UT-I Phoenix 1064665 Surge protection for information technology 24 VDC Screw connection Surge protection device Surge Protection *NON-CANCELLABLE, NON-RETURNABLE*
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
Price: $265.00
Sale Price:
$220.48

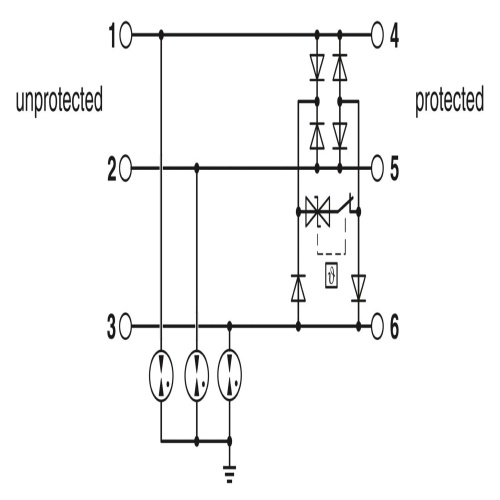

Surge protection, consisting of protective plug and base element, with integrated status indicator for a 3-wire floating Ex i signal circuit, HART-compatible.
| Specifications | |
| Max Discharge Capacity | 80 A |
| Arrester Class according to IEC | II |
| Arrester Class according to IEC | T2 |
| Fault Warning | Remote indication contact |
| Manufacturer | Phoenix Contact |
| Connection Method | Screw connection |
| Surge Protector Line Voltage | 24 Volt |
| Surge Protector Type | Base element |
| Maximum Continous Voltage | 500 Volt |
- Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
- Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
- Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
- Space-saving and cost-saving with a narrow overall width of just 6 mm
- The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
