TTC-6P-3-HF-F-12DC-PT-I Phoenix Contact 1065314 Surge protection for information technology Surge protection device
TTC-6P-3-HF-F-12DC-PT-I Phoenix 1065314 Surge protection for information technology 12 VDC Push-in connection Surge protection device Surge Protection *NON-CANCELLABLE, NON-RETURNABLE*
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
Price: $248.75
Sale Price:
$206.96

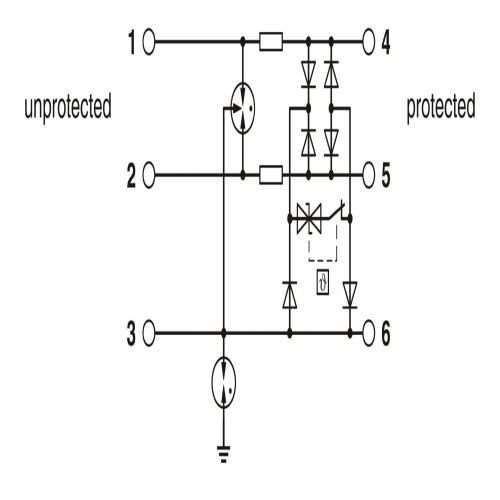

Surge protection, consisting of protective plug and base element, with integrated status indicator for three signal wires with common reference potential. For HF applications and telecommunications interfaces without supply voltage. Indirect grounding via gas-filled surge arrester.
| Specifications | |
| Max Discharge Capacity | 80 A |
| Arrester Class according to IEC | II |
| Arrester Class according to IEC | T2 |
| Fault Warning | Remote indication contact |
| Manufacturer | Phoenix Contact |
| Connection Method | Screw connection |
| Surge Protector Line Voltage | 12 Volt |
| Surge Protector Type | Base element |
| Maximum Continous Voltage | 500 Volt |
- Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
- Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
- Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features

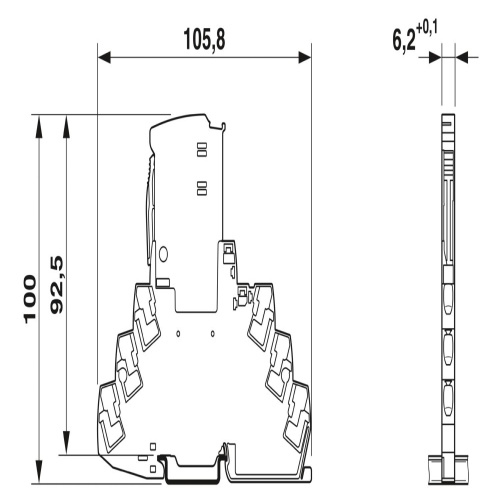

- Space-saving and cost-saving with a narrow overall width of just 6 mm
- The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
