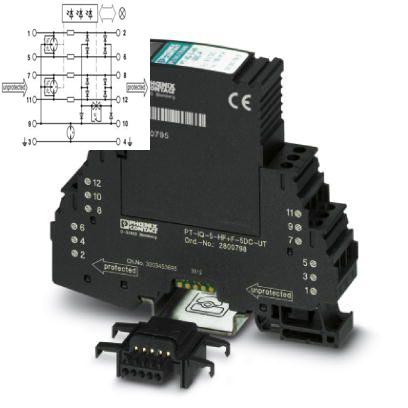

Phoenix Contact 2800798 Surge protection for information technology Surge protection device
Phoenix 2800798 Surge protection for information technology 5 VDC Screw connection,DIN rail NS35 Surge protection device Surge Protection
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $481.25
Sale Price:
$400.40
Surge protection, consisting of protective plug and base element, with integrated multi-stage status indicator on the module for five signal wires. For HF applications and telecommunications interfaces without supply voltage (up to 90 Mbps).
| Specifications | |
| Fault Warning | Remote indication contact |
| Max Discharge Capacity | 50 kA |
| Arrester Class according to IEC | I + II |
| Manufacturer | Phoenix Contact |
| Connection Method | Screw connection |
| Surge Protector Line Voltage | 5 Volt |
| Surge Protector Type | Surge protection for NEMA power supply units |
| Nominal Discharge Current | 20 kA |
