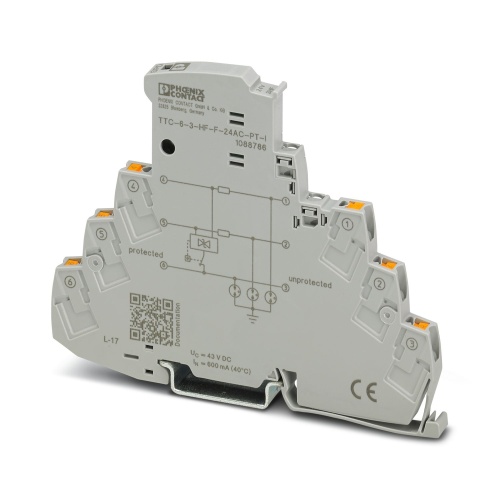

Phoenix Contact 1088786 Surge protection device TTC-6-3-HF-F-24AC-PT-I
Normally In Stock
Code: 72076
TTC-6-3-HF-F-24AC-PT-I Phoenix 1088786 Surge protection for information technology 24 VAC Push-in connection Surge protection device Surge Protection *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$171.78
Sale Price
$143.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1088786 A surge protection device is available that incorporates a status indicator, suitable for use with three signal wires connected to a shared ground potential, ideal for high-frequency applications such as telecommunications and data transfer rates up to 90 Mbps without an external power supply, utilizing indirect grounding through a gas discharge tube.
Specifications
Fault Warning
None
Max Discharge Capacity
80 A
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Base Element
Maximum Continous Voltage
500 Volt
Component
Surge Protection Device
Features
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
