Code: 72069

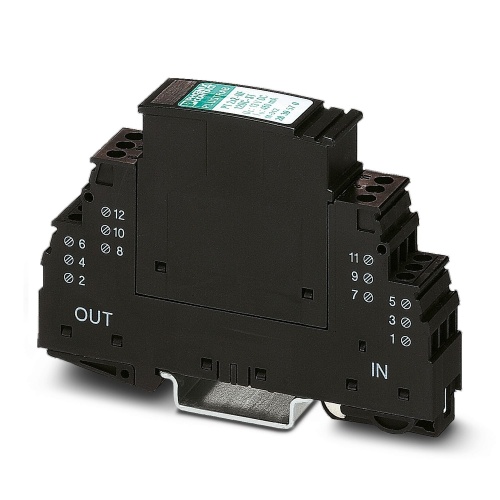

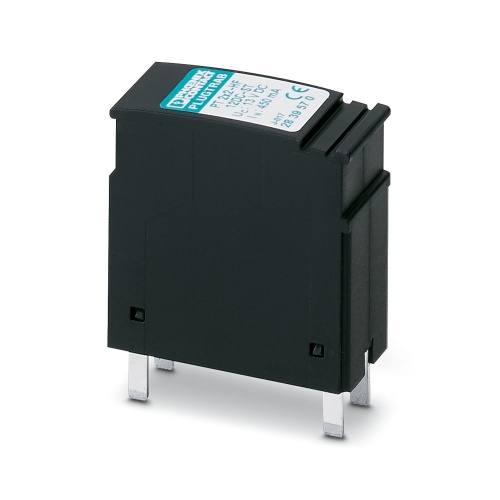

Phoenix Contact 2839570 Surge protection plug PT 2X2-HF-12 DC-ST
Normally In Stock
PT 2X2-HF-12 DC-ST Phoenix 2839570 Surge protection for information technology 12 VDC Screw connection (in connection with the base element) Surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$337.00
Sale Price
$280.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

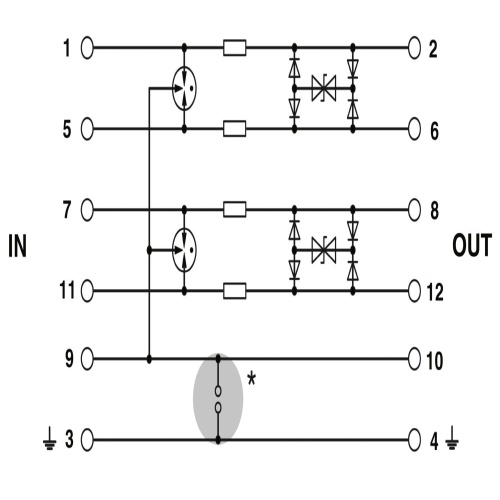

Phoenix Contact 2839570 A surge protection plug is designed to serve as a critical component at the base level, specifically tailored to protect against power surges in information technology (IT) settings. This device features two floating double-wire configurations in normal mode, providing coarse and fine voltage protections for each pair of wires. Notably, its design parameters include a 12-volt direct current (DC) operation.
Specifications
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Push-In Connection
Surge Protector Line Voltage
12 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
53 Volt
Nominal Discharge Current
5 Ka
Component
Surge Protection Plug
Features
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
