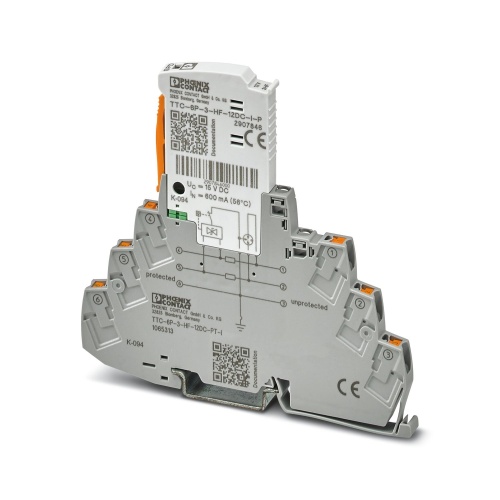

Phoenix Contact 1065313 Surge protection device TTC-6P-3-HF-12DC-PT-I
Normally In Stock
Code: 72066
TTC-6P-3-HF-12DC-PT-I Phoenix 1065313 Surge protection for information technology 12 VDC Push-in connection Surge protection device Surge Protection *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$212.27
Sale Price
$176.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

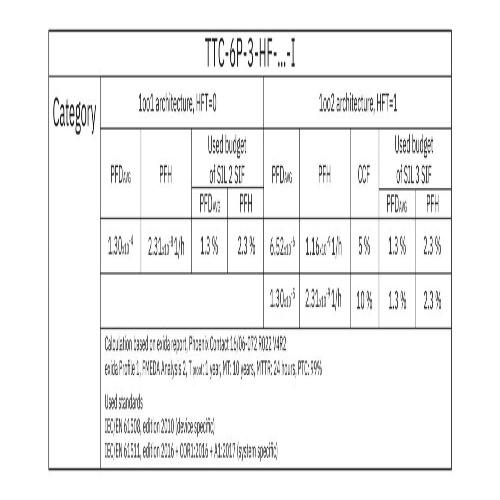

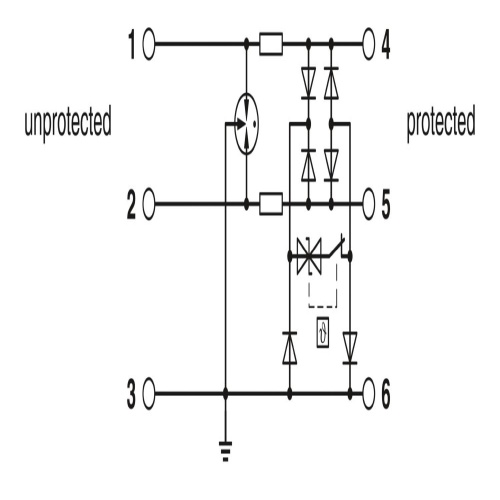

Phoenix Contact 1065313 A surge protection device features a built-in plug and base element that also serves as an integrated status indicator for three signal wires connected by a shared ground, ideal for use in high-frequency applications such as HF communications and telecommunications interfaces where there is no external power supply available, and can be employed in safety-critical circuits up to SIL 3.
Specifications
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
12 Volt
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
150 Volt
Max Discharge Capacity
40 A
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 1065313 Application Note English.pdfPhoenix 1065313 CAD data International.dxfPhoenix 1065313 CAD data International.pdfPhoenix 1065313 CAD data International.stpPhoenix 1065313 Certification International.pdfPhoenix 1065313 Flyer English-2.pdfPhoenix 1065313 Flyer English.pdfPhoenix 1065313 Manufacturers declaration English.pdfPhoenix 1065313 Manufacturers declaration International.pdfPhoenix 1065313 Surge Protection English.pdfPhoenix 1065313 Tender Text English.zip
