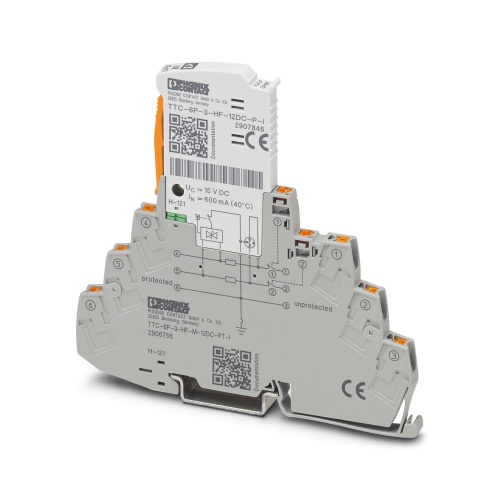

Phoenix Contact 2906756 Surge protection device TTC-6P-3-HF-M-12DC-PT-I
Normally In Stock
Code: 72062
TTC-6P-3-HF-M-12DC-PT-I Phoenix 2906756 Surge protection for information technology 12 VDC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$217.73
Sale Price
$181.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

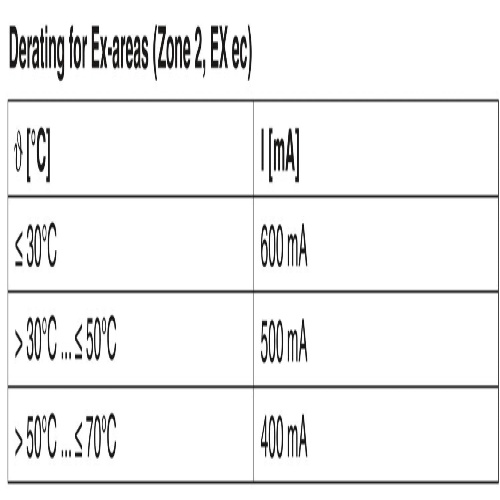

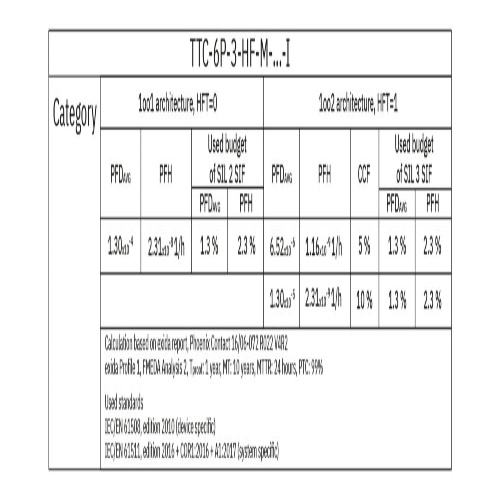

Phoenix Contact 2906756 A surge protection system consists of a protective plug and base element that incorporates a status indicator and knife disconnection capabilities for three signal wires sharing a common reference potential. This type of surge protection is suitable for high-frequency applications and telecommunications interfaces that operate without a supply voltage, requiring an EX e approval for zone 2. Additionally, it can be used in safety-related circuits to achieve SIL 3 certification.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
12 Volt
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
75 Volt
Nominal Discharge Current
15 Ka
Component
Surge Protection Device
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features

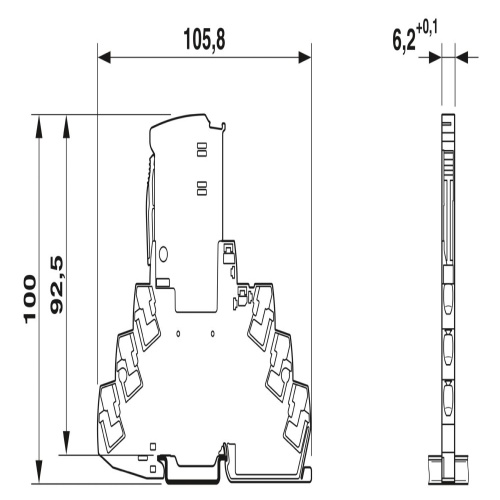

Space-saving and cost-saving with a narrow overall width of just 6 mm
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2906756 Application Note English.pdfPhoenix 2906756 CAD data International.dxfPhoenix 2906756 CAD data International.pdfPhoenix 2906756 CAD data International.stpPhoenix 2906756 Certification International-2.pdfPhoenix 2906756 Certification International.pdfPhoenix 2906756 Flyer English-2.pdfPhoenix 2906756 Flyer English.pdfPhoenix 2906756 Manufacturers declaration English.pdfPhoenix 2906756 Manufacturers declaration International.pdfPhoenix 2906756 Surge Protection English.pdfPhoenix 2906756 Tender Text English.zip
