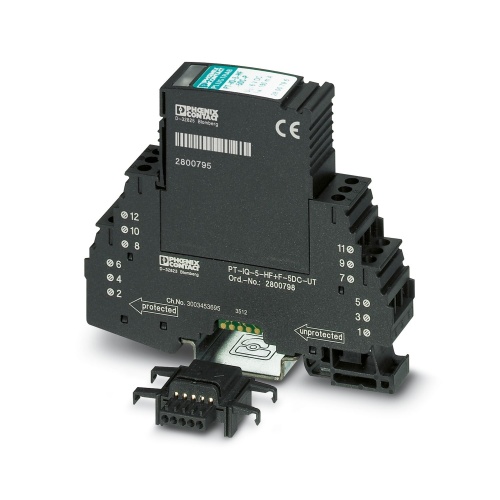

Phoenix Contact 2800797 Surge protection device PT-IQ-5-HF-5DC-UT
Normally In Stock
Code: 72053
PT-IQ-5-HF-5DC-UT Phoenix 2800797 Surge protection for information technology 5 VDC Screw connection,DIN rail NS35 Surge protection device Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$439.99
Sale Price
$366.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2800797 A surge protection system consists of a protective plug and base element that integrate a multi-stage status indicator on the module, supporting five signal wires. It is suitable for high-frequency applications and telecommunications interfaces without power supply voltage, reaching speeds of up to 90 Mbps. This system can also be used in safety-related circuits with SIL 3 certification.
Specifications
Fault Warning
Remote Indication Contact
Max Discharge Capacity
50 Ka
Arrester Class according to IEC
I + II
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
5 Volt
Surge Protector Type
Surge Protection For NEMA Power Supply Units
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Features
Maximum ease of maintenance, thanks to the 2-piece design
Integration of the status message into the system controller via group remote signaling
Install quickly and error-free with DIN rail connectors
Predictive monitoring with 3-stage LED display
Maximum protection for MCR applications with high discharge capacity
Downloads
Phoenix 2800797 CAD data International.dxfPhoenix 2800797 CAD data International.pdfPhoenix 2800797 CAD data International.stpPhoenix 2800797 Flyer English-2.pdfPhoenix 2800797 Flyer English.pdfPhoenix 2800797 Manufacturers declaration English.pdfPhoenix 2800797 Manufacturers declaration International.pdfPhoenix 2800797 Package Slip International.pdfPhoenix 2800797 Product Information English.pdfPhoenix 2800797 Software International.zipPhoenix 2800797 Surge Protection English.pdfPhoenix 2800797 Tender Text English.zip
