Phoenix Contact 1109712 Surge protection device TTC-6-3-HF-F-12DC-PT
Normally In Stock
Code: 72052
TTC-6-3-HF-F-12DC-PT Phoenix 1109712 Surge protection for information technology 12 VDC Push-in connection Surge protection device Surge Protection *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$164.11
Sale Price
$136.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

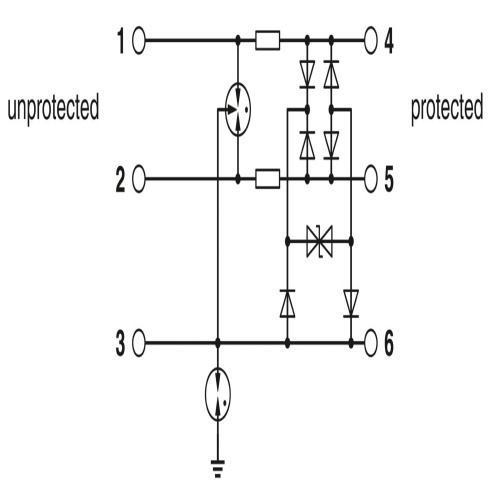

Phoenix Contact 1109712 For RF and low-power applications, particularly in high-frequency environments like HF and telecommunication interfaces, a surge protection solution can be employed that accommodates three signal wires with a shared ground reference point, safeguarding against power surges up to 90 megabits per second.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
12 Volt
Maximum Continous Voltage
260 Volt
Surge Protector Type
Surge Arrester
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Features
Protection to suit your needs, with a complete range of surge protective devices for all common MCR signals
Versatile use: designs and connection technology adapted to the application
Easy testing with pluggable surge protective devices
Worldwide use in potentially explosive areas with ATEX and IECEx approvals
Surge protection for MCR technology is part of the COMPLETE line system
