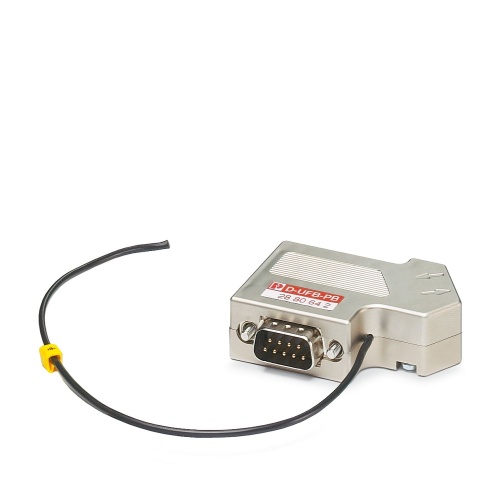

Phoenix Contact 2880642 Surge protection device D-UFB-PB
Normally In Stock
Code: 72044
D-UFB-PB Phoenix 2880642 Surge protection for information technology Screw connection & D-SUB-9,Screw terminal blocks,D-SUB-9 connector,PVC Litz wire, 1.0 mm², 0.5 m length Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$163.02
Sale Price
$135.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2880642 A high-quality surge protector is available within a 9-pin D-sub plug specifically designed for use in PROFIBUS-DP systems, which support data transmission speeds of up to 12 megabits per second.
Specifications
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Max Discharge Capacity
100 A (305 V AC)
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
305 Volt
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Features
Can be in applications up to 12 Mbps with adapted protective circuit
Adjustment of the transmission properties with switchable termination resistor
Space saving with use directly at the interface
Downloads
Phoenix 2880642 CAD data International.dxfPhoenix 2880642 CAD data International.stpPhoenix 2880642 Flyer English.pdfPhoenix 2880642 Manufacturers declaration English.pdfPhoenix 2880642 Manufacturers declaration International.pdfPhoenix 2880642 Package Slip International.pdfPhoenix 2880642 Product Information English.pdfPhoenix 2880642 Software International.zipPhoenix 2880642 Surge Protection English.pdfPhoenix 2880642 Tender Text English.zip
