Code: 72040

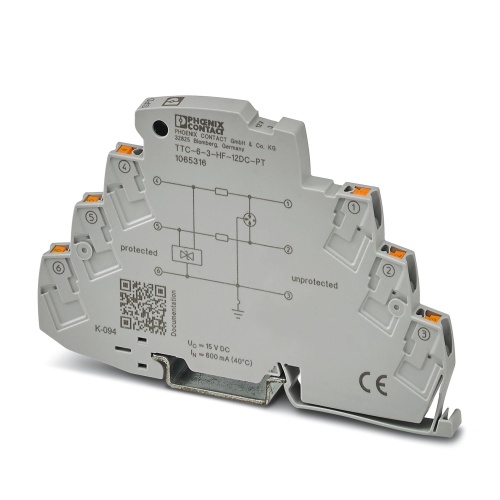

Phoenix Contact 1065316 Surge protection device TTC-6-3-HF-12DC-PT
Normally In Stock
TTC-6-3-HF-12DC-PT Phoenix 1065316 Surge protection for information technology 12 VDC Push-in connection Surge protection device Surge Protection *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$160.84
Sale Price
$134.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

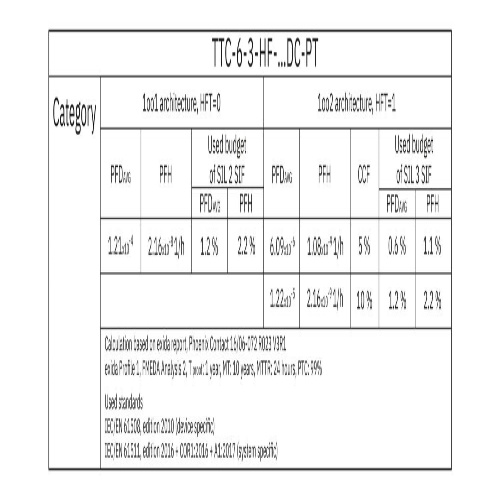

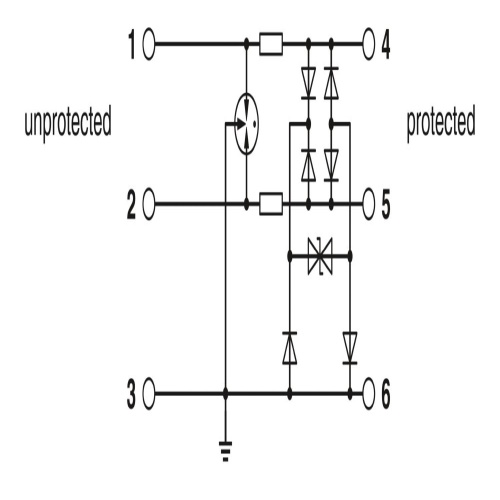

Phoenix Contact 1065316 This product offers surge protection for three signal wires with a shared ground potential, suitable for high-frequency applications such as those found in telecommunications, particularly at speeds of up to 90 Mbps and without an external power supply, and can also be employed in safety-critical systems up to SIL level 3.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
12 Volt
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
275 Volt
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Features
Cost-optimized with tailored product features

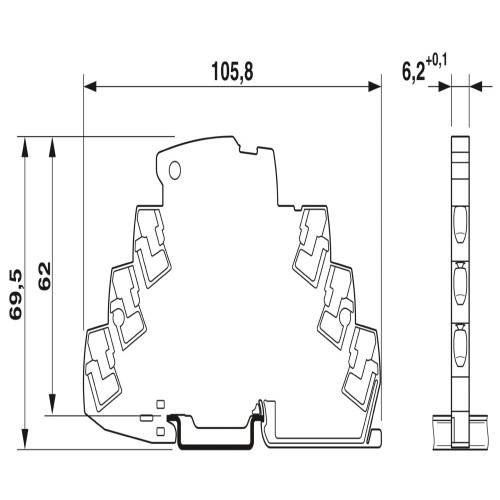

Space saving with a narrow overall width of just 6 mm
Downloads
Phoenix 1065316 Application Note English.pdfPhoenix 1065316 CAD data International.stpPhoenix 1065316 Certification International.pdfPhoenix 1065316 Flyer English-2.pdfPhoenix 1065316 Flyer English.pdfPhoenix 1065316 Manufacturers declaration English.pdfPhoenix 1065316 Manufacturers declaration International.pdfPhoenix 1065316 Surge Protection English.pdfPhoenix 1065316 Tender Text English.zip
