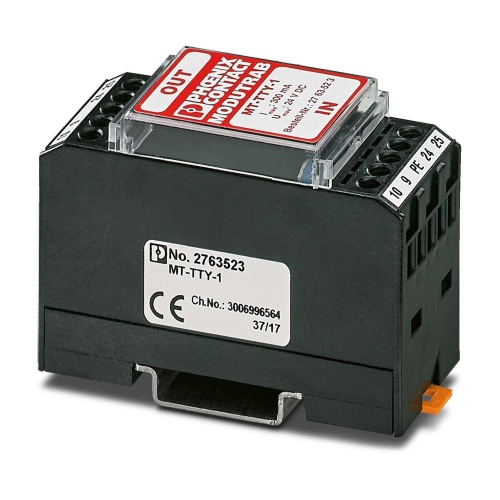

Phoenix Contact 2763523 Surge protection device MT-TTY-1
Normally In Stock
Code: 72038
MT-TTY-1 Phoenix 2763523 Surge protection for information technology Screw connection,Screw terminal blocks Surge protection device Surge Protection *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$387.28
Sale Price
$322.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

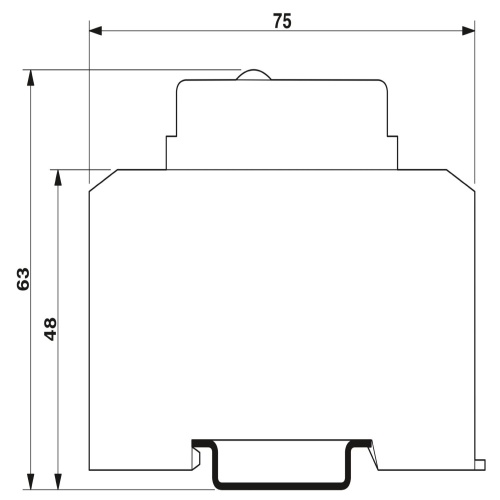

Phoenix Contact 2763523 A specialized rail-mountable module designed to provide surge protection for telecommunications interfaces is available and suitable for installation on the NS 35/7.5 track gauge system, featuring a compact housing width of just 30 millimeters.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
175 Volt
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Downloads
Phoenix 2763523 CAD data International.dxfPhoenix 2763523 CAD data International.pdfPhoenix 2763523 CAD data International.stpPhoenix 2763523 Flyer English.pdfPhoenix 2763523 Manufacturers declaration English.pdfPhoenix 2763523 Manufacturers declaration International.pdfPhoenix 2763523 Software International.zipPhoenix 2763523 Surge Protection English.pdfPhoenix 2763523 Tender Text English.zip
