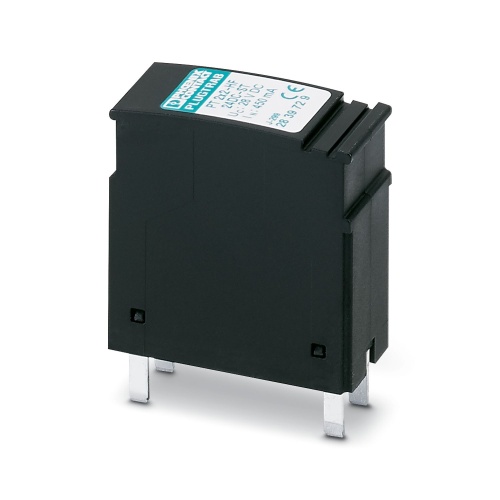

Phoenix Contact 2839729 Surge protection plug PT 2X2-HF-24 DC-ST
Normally In Stock
Code: 72034
PT 2X2-HF-24 DC-ST Phoenix 2839729 Surge protection for information technology 24 VDC Screw connection (in connection with the base element) Surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$337.00
Sale Price
$280.83
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

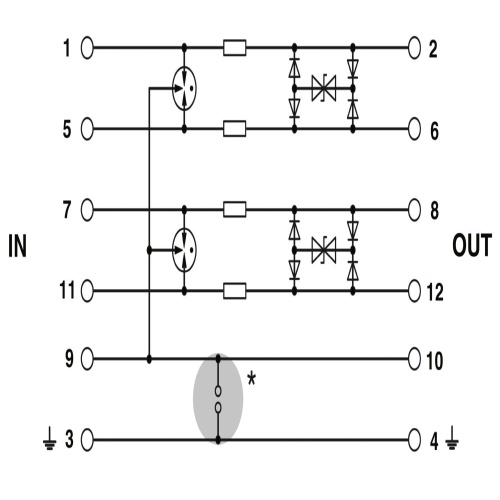

Phoenix Contact 2839729 A protective plug designed to accommodate two 2-core floating signal circuits is equipped with an HF protective circuit and can operate within a nominal voltage range of 24V DC.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Push-In Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
130 Volt
Nominal Discharge Current
5 Ka
Component
Surge Protection Plug
Features
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Downloads
Phoenix 2839729 CAD data International.dxfPhoenix 2839729 CAD data International.pdfPhoenix 2839729 CAD data International.stpPhoenix 2839729 Certification English.pdfPhoenix 2839729 EPLAN Macro International.z13Phoenix 2839729 EPLAN Macro International.zipPhoenix 2839729 Flyer English.pdfPhoenix 2839729 Manufacturers declaration English.pdfPhoenix 2839729 Manufacturers declaration International.pdfPhoenix 2839729 Package Slip International.pdfPhoenix 2839729 Software International.zipPhoenix 2839729 Surge Protection English.pdfPhoenix 2839729 Tender Text English.zip
