Code: 71998

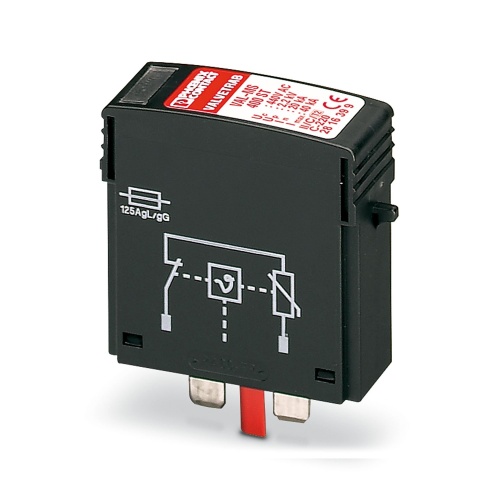

Phoenix Contact 2816399 Type 2 surge protection plug VAL-MS 400 ST
Normally In Stock
VAL-MS 400 ST Phoenix 2816399 Replacement plug 240/415 VAC pluggable Type 2 surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$144.61
Sale Price
$120.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2816399 A surge protection connector type 2 is used in conjunction with a high-capacity varistor specifically designed for the VAL-MS base element, offering enhanced protection against voltage surges. The device also features thermal monitoring and a visual fault warning system, providing immediate notification of any potential issues. Designed to operate at 400 V AC, this surge protection connector type 2 provides reliable and efficient protection for electrical systems.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Direction of Action
(L+)-PE
Direction of Action
(L-)-PE
Direction of Action
(L+)-(L-)
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Arrester
Nominal Discharge Current
10 Ka
Surge Protector Line Voltage
240-415 Volt
Component
Surge Protection Plug
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2816399 CAD data International.dxfPhoenix 2816399 CAD data International.pdfPhoenix 2816399 CAD data International.stpPhoenix 2816399 CAD data International.wrlPhoenix 2816399 Certification English.jpgPhoenix 2816399 Flyer English.pdfPhoenix 2816399 Manufacturers declaration English.pdfPhoenix 2816399 Manufacturers declaration International.pdfPhoenix 2816399 Package Slip International.pdfPhoenix 2816399 Software International.zipPhoenix 2816399 Surge Protection English.pdfPhoenix 2816399 Tender Text English.zipPhoenix 2816399 Various International.pdf
