Code: 71997

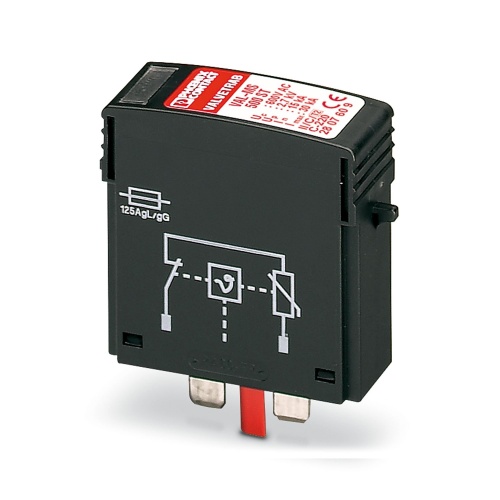

Phoenix Contact 2807609 Type 2 surge protection plug VAL-MS 500 ST
Normally In Stock
VAL-MS 500 ST Phoenix 2807609 Replacement plug 400/690 VAC pluggable Type 2 surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$144.61
Sale Price
$120.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2807609 A surge protection connector type 2 is designed for use in a 500V AC environment and features a high-capacity varistor as part of the VAL-MS base element, providing enhanced protection against voltage surges. The device also includes thermal monitoring capabilities that trigger a visual warning when any issues arise, ensuring safe operation and prompt maintenance of the electrical system.
Specifications
Arrester Class according to IEC
I
Arrester Class according to IEC
T1
Fault Warning
Optical
Max Discharge Capacity
25 Ka (264 V AC)
Arrester Class according to IEC
I - II
Arrester Class according to IEC
T1 - T2
Impulse Discharge Current
25 Ka
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
350 Volt
Nominal Discharge Current
25 Ka
Surge Protector Line Voltage
400-690 Volt
Component
Surge Protection Plug
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2807609 CAD data International.dxfPhoenix 2807609 CAD data International.pdfPhoenix 2807609 CAD data International.stpPhoenix 2807609 Certification English.jpgPhoenix 2807609 Flyer English.pdfPhoenix 2807609 Manufacturers declaration English.pdfPhoenix 2807609 Manufacturers declaration International.pdfPhoenix 2807609 Package Slip International.pdfPhoenix 2807609 Product Change Notification (PCN English.pdfPhoenix 2807609 Software International.zipPhoenix 2807609 Surge Protection English.pdfPhoenix 2807609 Tender Text English.zipPhoenix 2807609 Various International.pdf
