Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Phoenix Contact 2910335 Type 1 surge protection plug VAL-US-120/40-P
Normally In Stock
Code: 71971
VAL-US-120/40-P Phoenix 2910335 Replacement plug 120/208 VAC VALVETRAB plug-in system Type 1 surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$117.34
Sale Price
$97.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

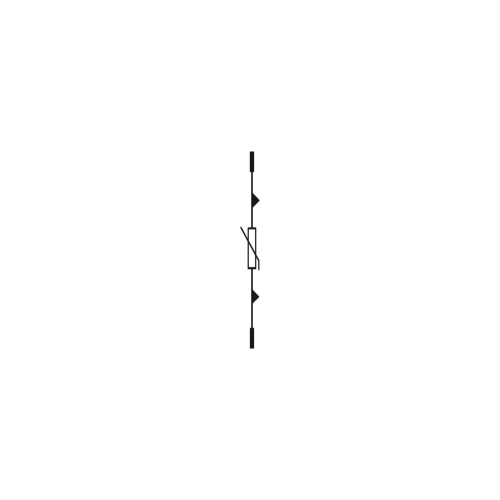

Phoenix Contact 2910335 A UL recognized type 1 surge protection device (SPD) and IEC type 2 plug can be used with VAL-US base elements, equipped with a varistor to regulate voltage spikes and a thermal disconnect to prevent overheating, providing both mechanical and visual alerts for faults or malfunction.
Specifications
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Max Discharge Capacity
100 A (305 V AC)
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
305 Volt
Nominal Discharge Current
20 Ka
Surge Protector Line Voltage
120-208 Volt
Component
Surge Protection Plug
Features
Mechanical coding of all slots
Optical, mechanical status indication for the individual arresters
Pluggable
Thermal disconnect device for each individual plug
Consists of base element and plug
Downloads
Phoenix 2910335 CAD data International.dxfPhoenix 2910335 CAD data International.pdfPhoenix 2910335 CAD data International.stpPhoenix 2910335 Flyer English.pdfPhoenix 2910335 Manufacturers declaration International.pdfPhoenix 2910335 Package Slip International.pdfPhoenix 2910335 Software International.zipPhoenix 2910335 Surge Protection English.pdfPhoenix 2910335 Tender Text English.zip
