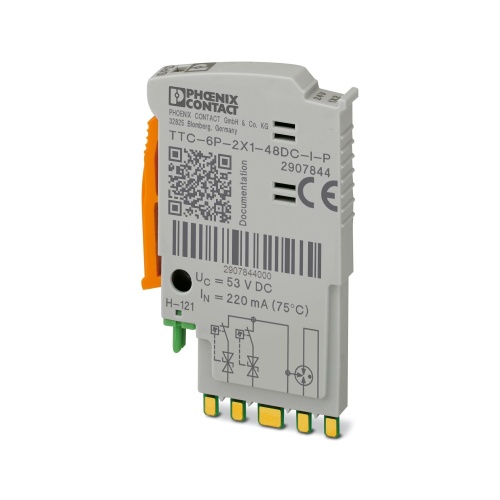

Phoenix Contact 2907844 Surge protection plug TTC-6P-2X1-48DC-I-P
Normally In Stock
Code: 71953
TTC-6P-2X1-48DC-I-P Phoenix 2907844 Replacement plug 48 VDC pluggable Surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$184.91
Sale Price
$154.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2907844 A surge protection plug features a built-in module that includes a status indicator, specifically designed to handle two signal wires connected to a shared ground reference potential. The nominal operating voltage of this device is 48 DC volts.
Specifications
Max Discharge Capacity
175 V AC
Manufacturer
Phoenix Contact
Surge Protector Line Voltage
48 Volt
Component
Surge Protection Plug
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2907844 CAD data International.dxfPhoenix 2907844 CAD data International.pdfPhoenix 2907844 CAD data International.stpPhoenix 2907844 Certification International-2.pdfPhoenix 2907844 Certification International.pdfPhoenix 2907844 Flyer English-2.pdfPhoenix 2907844 Flyer English.pdfPhoenix 2907844 Manufacturers declaration English.pdfPhoenix 2907844 Manufacturers declaration International.pdfPhoenix 2907844 Surge Protection English.pdfPhoenix 2907844 Tender Text English.zip
