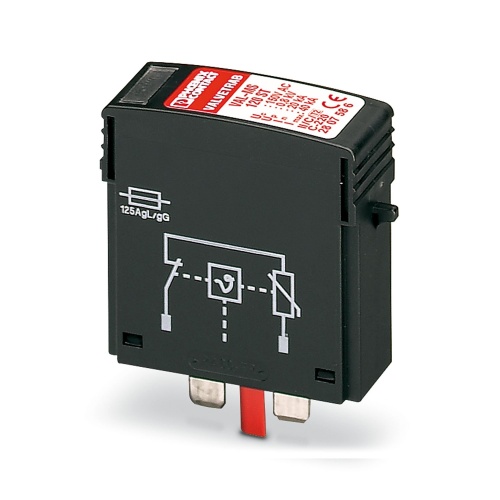

Phoenix Contact 2910341 Type 1 surge protection plug VAL-US-600D/30-P
Normally In Stock
Code: 71946
VAL-US-600D/30-P Phoenix 2910341 Replacement plug 554/960 VAC VALVETRAB plug-in system Type 1 surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$123.25
Sale Price
$102.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

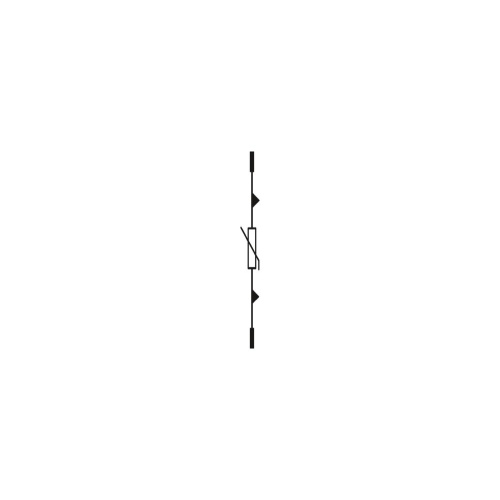

Phoenix Contact 2910341 The UL recognized type 1 SPD and IEC type 2 surge protection plug features a varistor and thermal disconnect to provide reliable protection for VAL-US base elements. It comes equipped with both mechanical and visual indicators to alert users of any potential faults or issues that may arise during use.
Specifications
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
275 Volt
Nominal Discharge Current
20 Ka
Surge Protector Line Voltage
554-960 Volt
Component
Surge Protection Plug
Features
Consists of base element and plug
Optical, mechanical status indication for the individual arresters
Mechanical coding of all slots
Thermal disconnect device for each individual plug
Pluggable
Downloads
Phoenix 2910341 CAD data International.dxfPhoenix 2910341 CAD data International.pdfPhoenix 2910341 CAD data International.stpPhoenix 2910341 Flyer English.pdfPhoenix 2910341 Manufacturers declaration International.pdfPhoenix 2910341 Package Slip International.pdfPhoenix 2910341 Software International.zipPhoenix 2910341 Surge Protection English.pdfPhoenix 2910341 Tender Text English.zip
