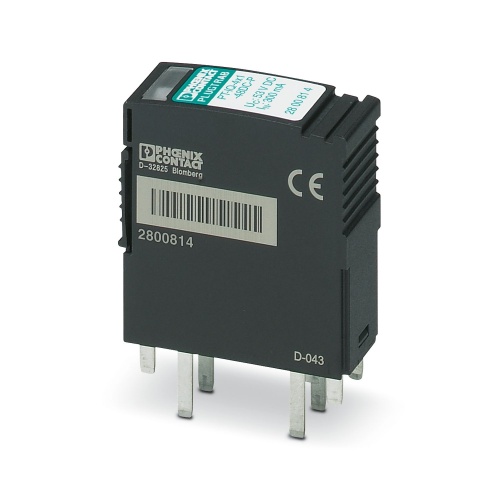

Phoenix Contact 2800814 Surge protection plug PT-IQ-4X1-48DC-P
Normally In Stock
Code: 71931
PT-IQ-4X1-48DC-P Phoenix 2800814 Replacement plug 48 VDC pluggable Surge protection plug Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$344.64
Sale Price
$287.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2800814 A surge protection plug features an integrated multi-stage status indicator that provides monitoring information for up to four signal wires connected at a common ground potential, operating within a nominal 48V DC voltage range.
Specifications
Fault Warning
Optical
Fault Warning
Multi-Stage
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
48 Volt
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
30 Volt
Component
Surge Protection Plug
Features
Maximum ease of maintenance, thanks to the 2-piece design
Integration of the status message into the system controller via group remote signaling
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Predictive monitoring with 3-stage LED display
Maximum protection for MCR applications with high discharge capacity
Downloads
Phoenix 2800814 CAD data International.dxfPhoenix 2800814 CAD data International.pdfPhoenix 2800814 CAD data International.stpPhoenix 2800814 Flyer English-2.pdfPhoenix 2800814 Flyer English.pdfPhoenix 2800814 Manufacturers declaration English.pdfPhoenix 2800814 Manufacturers declaration International.pdfPhoenix 2800814 Package Slip International.pdfPhoenix 2800814 Software International.zipPhoenix 2800814 Surge Protection English.pdfPhoenix 2800814 Tender Text English.zip
