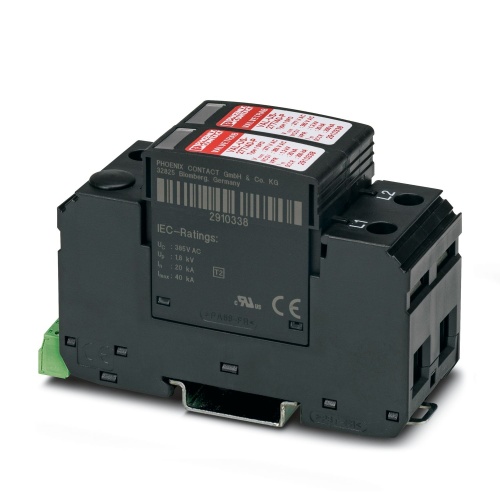

Phoenix Contact 2910340 Type 1 surge protection plug VAL-US-480D/30-P
Normally In Stock
Code: 71913
VAL-US-480D/30-P Phoenix 2910340 Replacement plug 400/690 VAC VALVETRAB plug-in system Type 1 surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$123.25
Sale Price
$102.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2910340 A UL recognized type 1 SPD (Surge Protection Device) and IEC type 2 surge protector plug is available featuring a varistor and thermal disconnect specifically designed to be used with VAL-US base elements, providing mechanical and visual warnings for faults.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Direction of Action
(L+)-PE
Direction of Action
(L-)-PE
Direction of Action
(L+)-(L-)
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Arrester
Nominal Discharge Current
10 Ka
Surge Protector Line Voltage
400-690 Volt
Component
Surge Protection Plug
Features
Mechanical coding of all slots
Optical, mechanical status indication for the individual arresters
Pluggable
Thermal disconnect device for each individual plug
Consists of base element and plug
Downloads
Phoenix 2910340 CAD data International.dxfPhoenix 2910340 CAD data International.pdfPhoenix 2910340 CAD data International.stpPhoenix 2910340 Flyer English.pdfPhoenix 2910340 Manufacturers declaration International.pdfPhoenix 2910340 Package Slip International.pdfPhoenix 2910340 Software International.zipPhoenix 2910340 Surge Protection English.pdfPhoenix 2910340 Tender Text English.zip
