Phoenix Contact 2910337 Type 1 surge protection plug VAL-US-240D/40-P
Normally In Stock
Code: 71911
VAL-US-240D/40-P Phoenix 2910337 Replacement plug 240/415 VAC VALVETRAB plug-in system Type 1 surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$123.25
Sale Price
$102.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

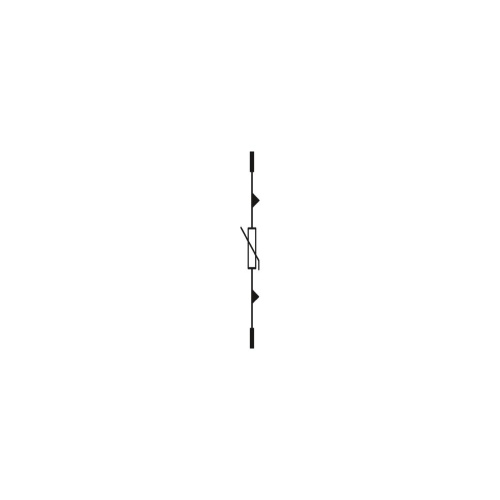

Phoenix Contact 2910337 The UL recognized Type 1 SPD and IEC Type 2 surge protection plug features a varistor and thermal disconnect, designed to work seamlessly with VAL-US base elements. This plug also provides an added layer of safety with mechanical and visual fault warnings.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Direction of Action
(L+)-PE
Direction of Action
(L-)-PE
Direction of Action
(L+)-(L-)
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Arrester
Nominal Discharge Current
10 Ka
Surge Protector Line Voltage
240-415 Volt
Component
Surge Protection Plug
Features
Mechanical coding of all slots
Optical, mechanical status indication for the individual arresters
Pluggable
Thermal disconnect device for each individual plug
Consists of base element and plug
Downloads
Phoenix 2910337 CAD data International.dxfPhoenix 2910337 CAD data International.pdfPhoenix 2910337 CAD data International.stpPhoenix 2910337 Flyer English.pdfPhoenix 2910337 Manufacturers declaration International.pdfPhoenix 2910337 Package Slip International.pdfPhoenix 2910337 Software International.zipPhoenix 2910337 Surge Protection English.pdfPhoenix 2910337 Tender Text English.zip
