Phoenix Contact 2910361 Type 1 surge protection device VAL-US-240/40/1+0-FM
Normally In Stock
Code: 71904
VAL-US-240/40/1+0-FM Phoenix 2910361 Surge arrester 240 VAC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Type 1 surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$150.38
Sale Price
$125.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

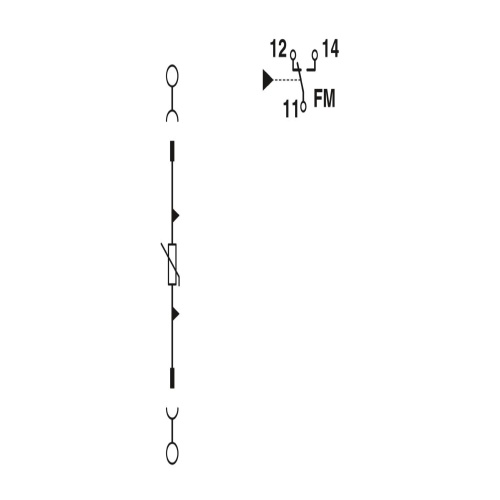

Phoenix Contact 2910361 A surge protective device with a single channel and remote indication contact is designed to protect against voltage surges in 240V AC systems, providing a convenient way to monitor the status of the device through a separate contact that indicates when it has tripped or been activated.
Specifications
Fault Warning
Remote Indication Contact
Max Discharge Capacity
50 Ka
Arrester Class according to IEC
I + II
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Protection For NEMA Power Supply Units
Nominal Discharge Current
20 Ka
Surge Protector Line Voltage
240 Volt
Component
Surge Protection Device
Features
Optical, mechanical status indication for the individual arresters
Mechanical coding of all slots
With floating remote indication contact
Downloads
Phoenix 2910361 CAD data International.dxfPhoenix 2910361 CAD data International.pdfPhoenix 2910361 CAD data International.stpPhoenix 2910361 Flyer English.pdfPhoenix 2910361 Manufacturers declaration International.pdfPhoenix 2910361 Package Slip International.pdfPhoenix 2910361 Surge Protection English.pdfPhoenix 2910361 Tender Text English.zip
