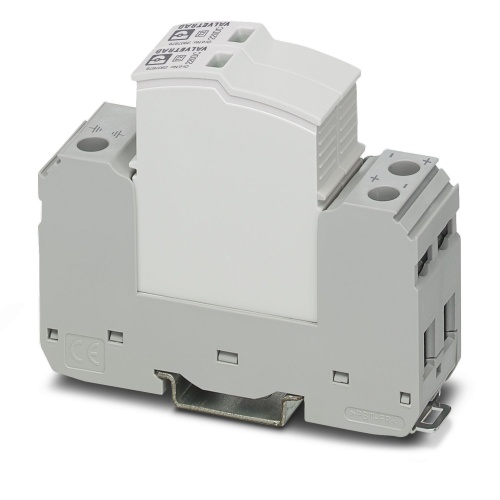

Phoenix Contact 2907875 Type 2 surge arrester VAL-SEC-T2-2+0-220DC-FM
Normally In Stock
Code: 71829
VAL-SEC-T2-2+0-220DC-FM Phoenix 2907875 Surge arrester 200 VDC - 220 VDC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Type 2 surge arrester Surge Protection
Condition: New
Usually ships Same Day or Next Day$327.91
Sale Price
$273.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2907875 A pluggable surge protective device that meets Type 2/Class II standards is designed to provide protection against voltage surges on DC power sources with linear operating characteristics, featuring a remote indication contact that allows for easy monitoring and alerting of any issues or malfunctions.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Nominal Discharge Current
300 Amp
Connection Method
Screw Connection
Maximum Continous Voltage
30 Volt
Surge Protector Line Voltage
200 Volt - 220 Volt
Component
Surge Arrester
Features
More space in the control cabinet due to the narrow overall width of just 12 mm per position
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Extremely narrow design, just 12 mm per position
Varistor arrester with a low leakage current
Downloads
Phoenix 2907875 CAD data International.dxfPhoenix 2907875 CAD data International.pdfPhoenix 2907875 CAD data International.stpPhoenix 2907875 Flyer English-2.pdfPhoenix 2907875 Flyer English.pdfPhoenix 2907875 Manufacturers declaration English.pdfPhoenix 2907875 Manufacturers declaration International.pdfPhoenix 2907875 Package Slip International.pdfPhoenix 2907875 Surge Protection English.pdfPhoenix 2907875 Tender Text English.zip
