Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 71776

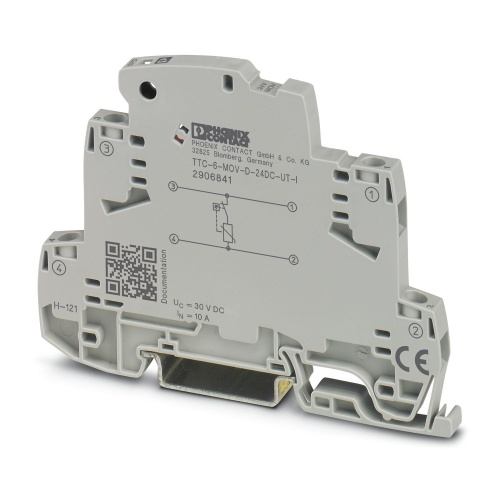

Phoenix Contact 2906841 Surge protection device TTC-6-MOV-D-24DC-UT-I
Normally In Stock
TTC-6-MOV-D-24DC-UT-I Phoenix 2906841 Surge protection for measurement and control technology 24 VDC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$32.39
Sale Price
$26.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

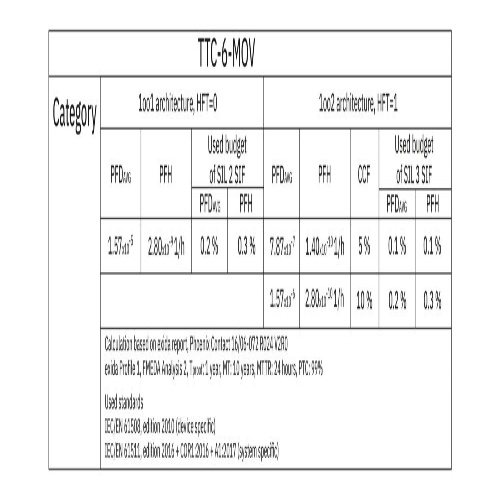

Phoenix Contact 2906841 A medium surge protection device with a built-in status indicator is available for use on single 2-wire floating signal circuits, making it suitable for application in high-safety environments up to SIL level 3.
Specifications
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
305 Volt
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Max Discharge Capacity
100 A (305 VAC)
Features
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
Downloads
Phoenix 2906841 Application Note English.pdfPhoenix 2906841 CAD data International.dxfPhoenix 2906841 CAD data International.pdfPhoenix 2906841 CAD data International.stpPhoenix 2906841 Certification International-2.pdfPhoenix 2906841 Certification International.pdfPhoenix 2906841 Flyer English-2.pdfPhoenix 2906841 Flyer English.pdfPhoenix 2906841 Manufacturers declaration English.pdfPhoenix 2906841 Manufacturers declaration International.pdfPhoenix 2906841 Product Information English.pdfPhoenix 2906841 Surge Protection English.pdfPhoenix 2906841 Tender Text English.zip
