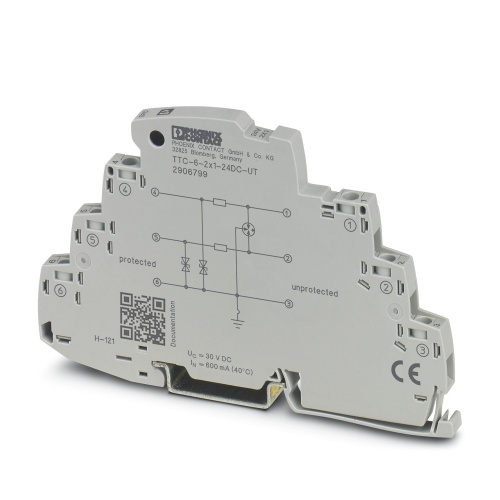

Phoenix Contact 2906799 Surge protection device TTC-6-2X1-24DC-UT
Normally In Stock
Code: 71771
TTC-6-2X1-24DC-UT Phoenix 2906799 Surge protection for measurement and control technology 24 VDC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$148.99
Sale Price
$124.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

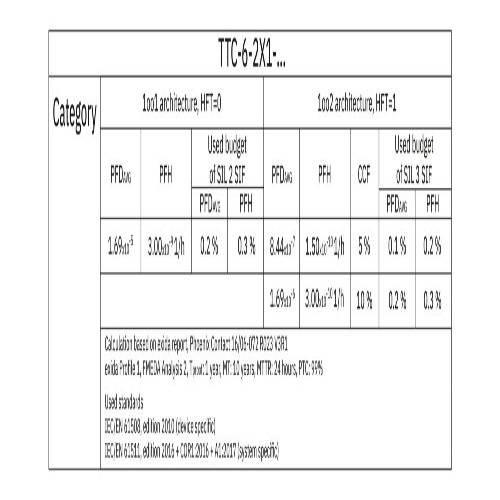

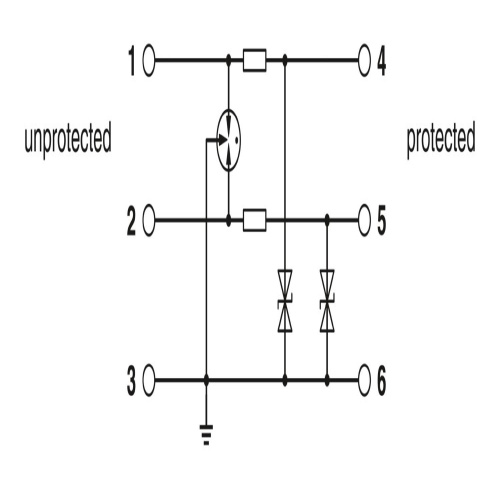

Phoenix Contact 2906799 Surge protection can be applied to pairs of signal wires that share a common ground potential, such as digital input/output connections, and are suitable for use in safety-critical systems rated at SIL 3 level.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Arrester
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Features
Cost-optimized with tailored product features
Easy selection for all possible demands in MCR applications with a complete product portfolio

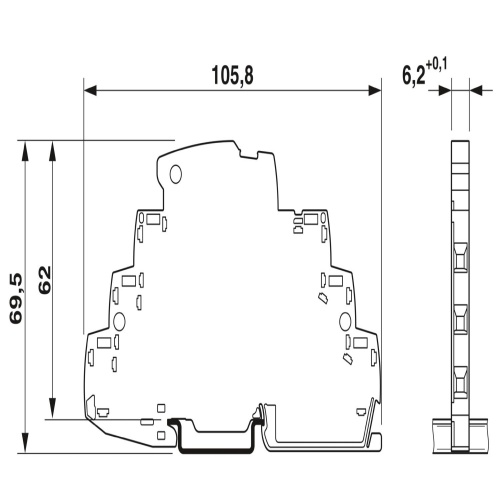

Space saving with a narrow overall width of just 6 mm
Downloads
Phoenix 2906799 Application Note English.pdfPhoenix 2906799 CAD data International.dxfPhoenix 2906799 CAD data International.pdfPhoenix 2906799 CAD data International.stpPhoenix 2906799 Certification International-2.pdfPhoenix 2906799 Certification International-3.pdfPhoenix 2906799 Certification International.pdfPhoenix 2906799 Flyer English-2.pdfPhoenix 2906799 Flyer English.pdfPhoenix 2906799 Manufacturers declaration English.pdfPhoenix 2906799 Manufacturers declaration International.pdfPhoenix 2906799 Product Information English.pdfPhoenix 2906799 Surge Protection English.pdfPhoenix 2906799 Tender Text English.zip
