Code: 71767

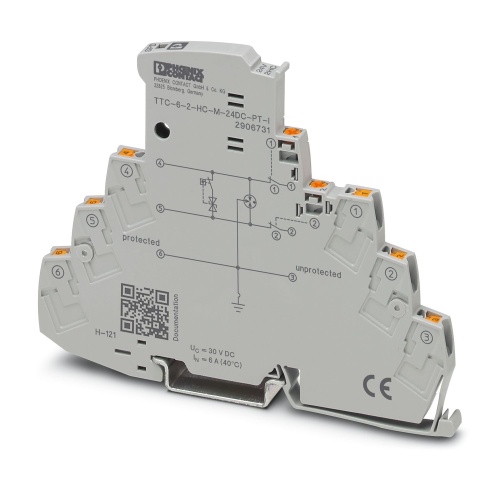

Phoenix Contact 2906731 Surge protection device TTC-6-2-HC-M-24DC-PT-I
Normally In Stock
TTC-6-2-HC-M-24DC-PT-I Phoenix 2906731 Surge protection for measurement and control technology 24 VDC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$167.75
Sale Price
$139.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2906731 A surge protector with an integrated status indicator that can also disconnect a knife switch is suitable for use on two-wire floaters signals with high nominal currents and is compatible with the KNX network standard, making it ideal for use in safety-critical applications up to SIL 3 level of reliability.
Specifications
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
385 Volt
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Features
Signal circuits easily interrupted for maintenance work, thanks to vertical knife disconnection
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
Downloads
Phoenix 2906731 Application Note English.pdfPhoenix 2906731 CAD data International.dxfPhoenix 2906731 CAD data International.pdfPhoenix 2906731 CAD data International.stpPhoenix 2906731 Certification International-2.pdfPhoenix 2906731 Certification International.pdfPhoenix 2906731 Flyer English-2.pdfPhoenix 2906731 Flyer English.pdfPhoenix 2906731 Manufacturers declaration English.pdfPhoenix 2906731 Manufacturers declaration International.pdfPhoenix 2906731 Product Information English.pdfPhoenix 2906731 Surge Protection English.pdfPhoenix 2906731 Tender Text English.zip
