Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

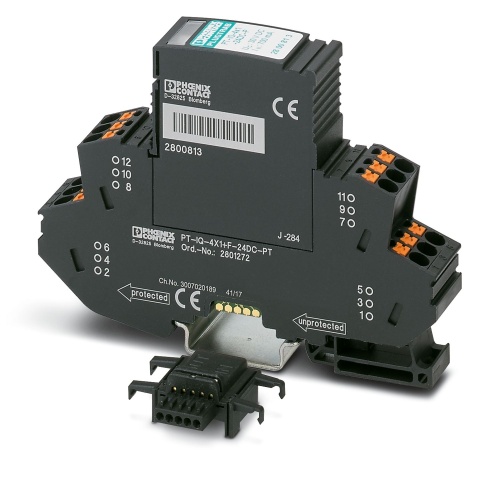

Phoenix Contact 2801272 Surge protection device PT-IQ-4X1+F-24DC-PT
Normally In Stock
Code: 71764
PT-IQ-4X1+F-24DC-PT Phoenix 2801272 Surge protection for measurement and control technology 24 VDC Push-in connection,DIN rail NS35 Surge protection device Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$427.80
Sale Price
$356.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

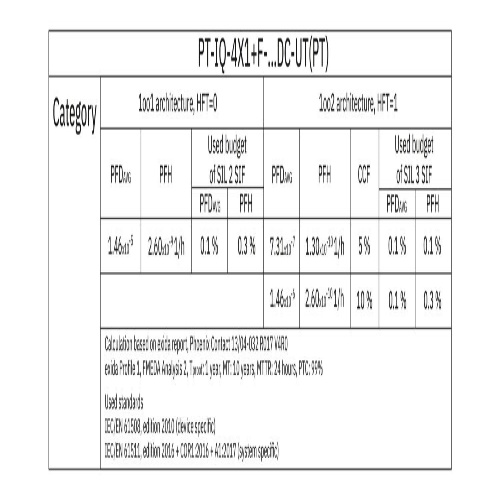

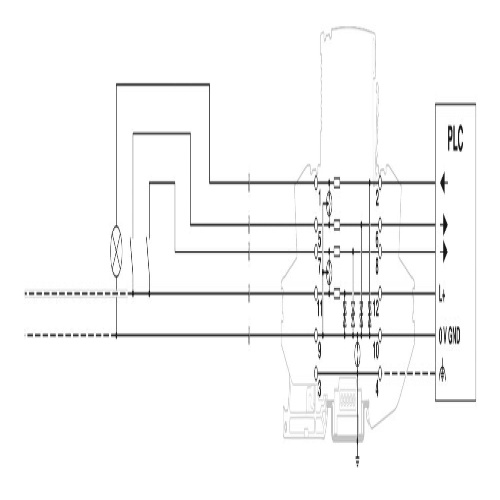

Phoenix Contact 2801272 The surge protection device features a protective plug and base element that incorporates a multi-stage status indicator for monitoring four signal wires connected to a common reference potential, utilizing an indirect grounding method through a gas discharge tube, suitable for use in safety-critical applications with SIL 3 certification.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
B3
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Nominal Discharge Current
350 Amp
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Information Technology
Maximum Continous Voltage
6 Volt
Component
Surge Protection Device
Features
Maximum ease of maintenance, thanks to the 2-piece design
Integration of the status message into the system controller via group remote signaling
Install quickly and error-free with DIN rail connectors
Predictive monitoring with 3-stage LED display
Maximum protection for MCR applications with high discharge capacity
Downloads
Phoenix 2801272 CAD data International.dxfPhoenix 2801272 CAD data International.pdfPhoenix 2801272 CAD data International.stpPhoenix 2801272 Flyer English-2.pdfPhoenix 2801272 Flyer English.pdfPhoenix 2801272 Manufacturers declaration English.pdfPhoenix 2801272 Manufacturers declaration International.pdfPhoenix 2801272 Package Slip International.pdfPhoenix 2801272 Product Information English.pdfPhoenix 2801272 Software International.zipPhoenix 2801272 Surge Protection English.pdfPhoenix 2801272 Tender Text English.zip
