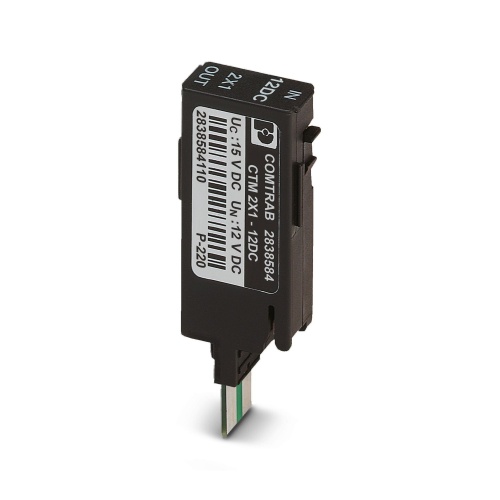

Phoenix Contact 2838584 Surge protection plug CTM 2X1- 12DC
Normally In Stock
Code: 71759
CTM 2X1- 12DC Phoenix 2838584 Surge protection for measurement and control technology 12 VDC can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips,COMTRAB plug-in system,Spring contact Surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$107.09
Sale Price
$89.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

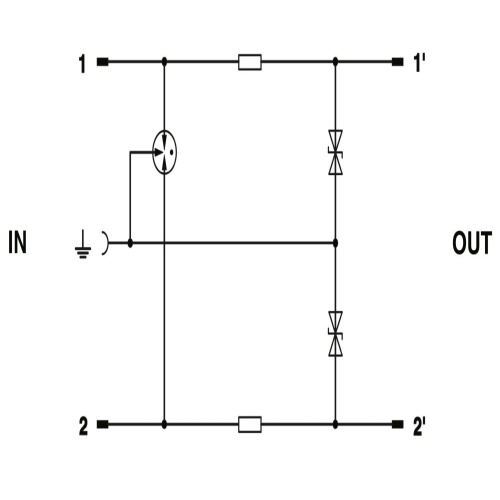

Phoenix Contact 2838584 The LSA-PLUS plug features a built-in protective circuit designed specifically for two-conductor signal circuits, which are grounded on the opposite side of the conductor. This plug has a nominal voltage rating of 12V DC.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Nominal Discharge Current
365 Amp
Connection Method
Screw Connection
Surge Protector Line Voltage
12 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
27 Volt
Component
Surge Protection Plug
Features
Flexible fields of application with modular protective plug
Can be used in LSA-PLUS disconnect and control strips or CT-TERMIBLOCK via adapted connection technology
Space-saving due to compact design
Downloads
Phoenix 2838584 CAD data International.dxfPhoenix 2838584 CAD data International.pdfPhoenix 2838584 CAD data International.stpPhoenix 2838584 Flyer English.pdfPhoenix 2838584 Manufacturers declaration International.pdfPhoenix 2838584 Package Slip International.pdfPhoenix 2838584 Product Information English.pdfPhoenix 2838584 Software International.zipPhoenix 2838584 Surge Protection English.pdfPhoenix 2838584 Tender Text English.zip
