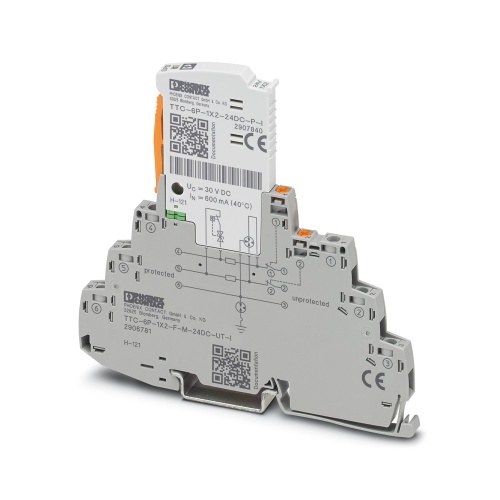

Phoenix Contact 2906781 Surge protection device TTC-6P-1X2-F-M-24DC-UT-I
Normally In Stock
Code: 71742
TTC-6P-1X2-F-M-24DC-UT-I Phoenix 2906781 Surge protection for measurement and control technology 24 VDC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$208.98
Sale Price
$174.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

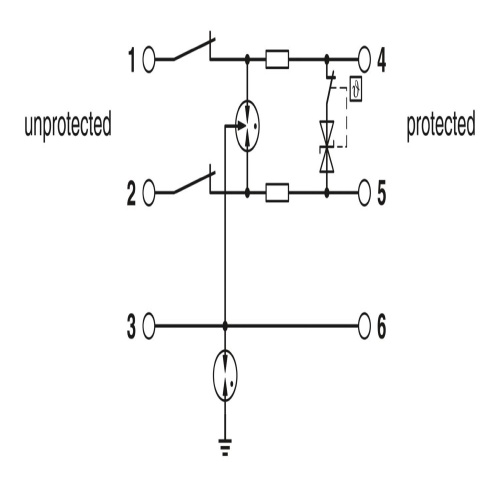

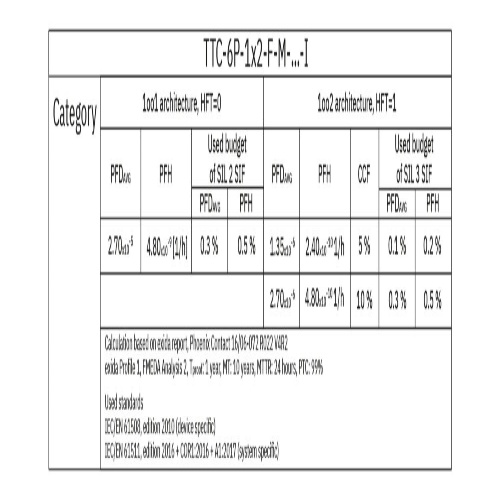

Phoenix Contact 2906781 A surge protection system typically consists of a protective plug and base element that integrate a status indicator and disconnect knife, designed for use with 2-wire floating signal circuits such as those with current loops between 0(4) mA and 20 mA. The system is also equipped with indirect grounding via a gas discharge tube, making it compatible with HART protocols, and can be employed in safety-related circuits that require SIL 3 certification.
Specifications
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
385 Volt
Nominal Discharge Current
40 Ka
Component
Surge Protection Device
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2906781 Application Note English.pdfPhoenix 2906781 CAD data International.dxfPhoenix 2906781 CAD data International.pdfPhoenix 2906781 CAD data International.stpPhoenix 2906781 Certification International-2.pdfPhoenix 2906781 Certification International.pdfPhoenix 2906781 Flyer English-2.pdfPhoenix 2906781 Flyer English.pdfPhoenix 2906781 Manufacturers declaration English.pdfPhoenix 2906781 Manufacturers declaration International.pdfPhoenix 2906781 Surge Protection English.pdfPhoenix 2906781 Tender Text English.zip
