Code: 71728

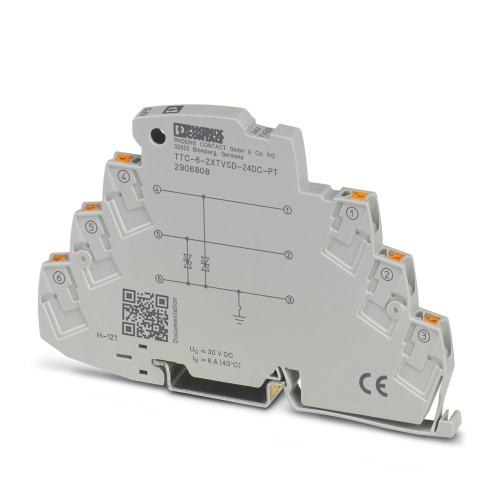

Phoenix Contact 2906808 Surge protection device TTC-6-2XTVSD-24DC-PT
Normally In Stock
TTC-6-2XTVSD-24DC-PT Phoenix 2906808 Surge protection for measurement and control technology 24 VDC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$87.91
Sale Price
$73.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

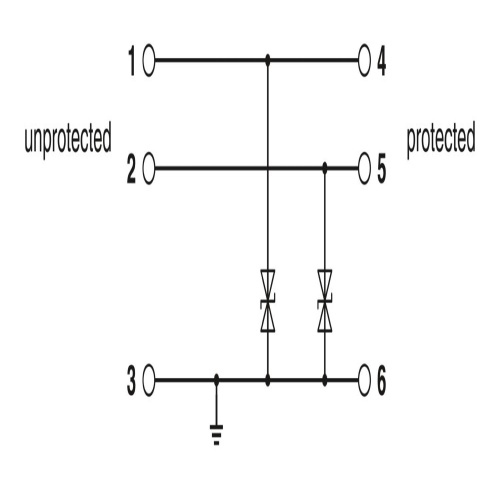

Phoenix Contact 2906808 A suitable product provides fine surge protection for two signal wires with a shared common reference potential, making it ideal for use in safety-critical applications rated up to SIL 3.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Direction of Action
(L+)-PE
Direction of Action
(L-)-PE
Direction of Action
(L+)-(L-)
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Arrester
Nominal Discharge Current
10 Ka
Component
Surge Protection Device
Features
Quick and tool-free installation of surge protective devices, thanks to Push-in connection technology
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
Downloads
Phoenix 2906808 Application Note English.pdfPhoenix 2906808 CAD data International.dxfPhoenix 2906808 CAD data International.pdfPhoenix 2906808 CAD data International.stpPhoenix 2906808 Certification International-2.pdfPhoenix 2906808 Certification International.pdfPhoenix 2906808 Flyer English-2.pdfPhoenix 2906808 Flyer English.pdfPhoenix 2906808 Manufacturers declaration English.pdfPhoenix 2906808 Manufacturers declaration International.pdfPhoenix 2906808 Product Information English.pdfPhoenix 2906808 Surge Protection English.pdfPhoenix 2906808 Tender Text English.zip
