Code: 71721

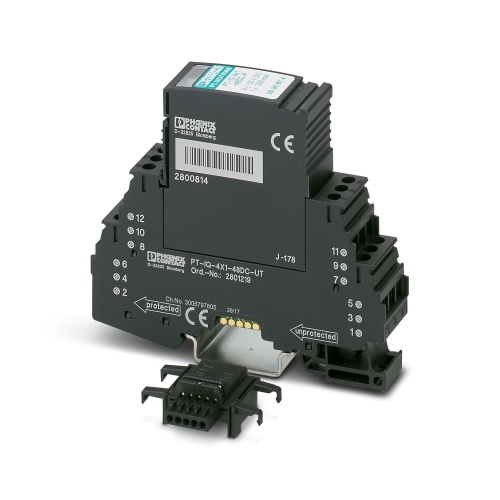

Phoenix Contact 2801219 Surge protection device PT-IQ-4X1-48DC-UT
Normally In Stock
PT-IQ-4X1-48DC-UT Phoenix 2801219 Surge protection for measurement and control technology 48 VDC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$439.99
Sale Price
$366.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2801219 A surge protection system consists of a protective plug and a base element that features an integrated multi-stage status indicator for use with four signal wires sharing a common reference potential, suitable for applications involving safety-related circuits up to SIL 3 level of reliability.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
48 Volt
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
75 Volt
Nominal Discharge Current
15 Ka
Component
Surge Protection Device
Features
Maximum ease of maintenance, thanks to the 2-piece design
Integration of the status message into the system controller via group remote signaling
Install quickly and error-free with DIN rail connectors
Predictive monitoring with 3-stage LED display
Maximum protection for MCR applications with high discharge capacity
Downloads
Phoenix 2801219 CAD data International.dxfPhoenix 2801219 CAD data International.pdfPhoenix 2801219 CAD data International.stpPhoenix 2801219 Flyer English-2.pdfPhoenix 2801219 Flyer English.pdfPhoenix 2801219 Manufacturer's declaration English.pdfPhoenix 2801219 Manufacturer's declaration International.pdfPhoenix 2801219 Manufacturers declaration English.pdfPhoenix 2801219 Manufacturers declaration International.pdfPhoenix 2801219 Package Slip International.pdfPhoenix 2801219 Product Information English.pdfPhoenix 2801219 Software International.zipPhoenix 2801219 Surge Protection English.pdfPhoenix 2801219 Tender Text English.zip
