Phoenix Contact 2907325 Surge protection device TTC-3-1X2-24DC-PT
Normally In Stock
Code: 71699
TTC-3-1X2-24DC-PT Phoenix 2907325 Surge protection for measurement and control technology 24 VDC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$165.29
Sale Price
$137.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

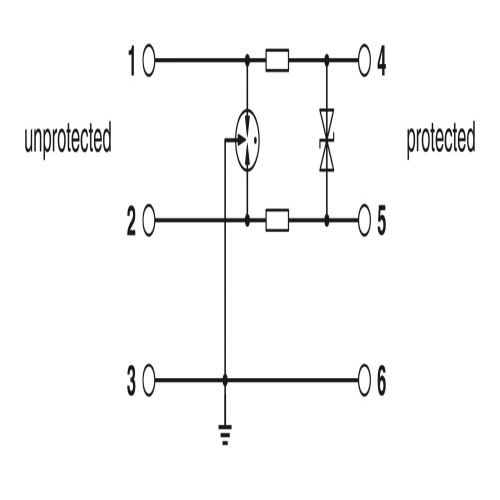

Phoenix Contact 2907325 A 2-wire floating signal circuit with an adjustable 0-20 mA current loop can provide surge protection, specifically designed for applications requiring SIL 3 level of safety and compatibility with HART standards, making it suitable for use in safety-related circuits.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
30 Volt
Nominal Discharge Current
10 Ka
Component
Surge Protection Device
Features
Cost-optimized with tailored product features
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features

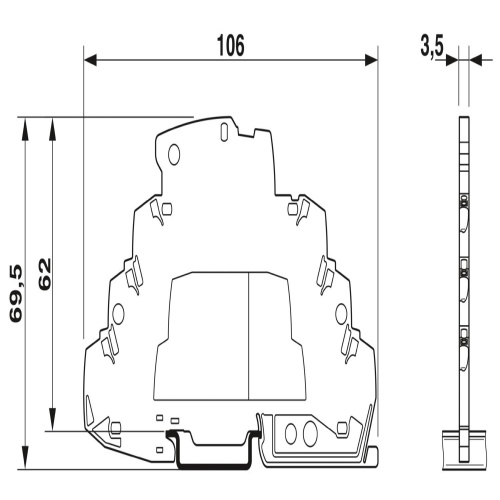

Extremely space-saving installation with the narrowest overall width of just 3.5 mm
Downloads
Phoenix 2907325 Application Note English.pdfPhoenix 2907325 CAD data International.dxfPhoenix 2907325 CAD data International.pdfPhoenix 2907325 CAD data International.stpPhoenix 2907325 Certification International-2.pdfPhoenix 2907325 Certification International.pdfPhoenix 2907325 Flyer English-2.pdfPhoenix 2907325 Flyer English.pdfPhoenix 2907325 Manufacturers declaration English.pdfPhoenix 2907325 Manufacturers declaration International.pdfPhoenix 2907325 Product Information English.pdfPhoenix 2907325 Surge Protection English.pdfPhoenix 2907325 Tender Text English.zip
