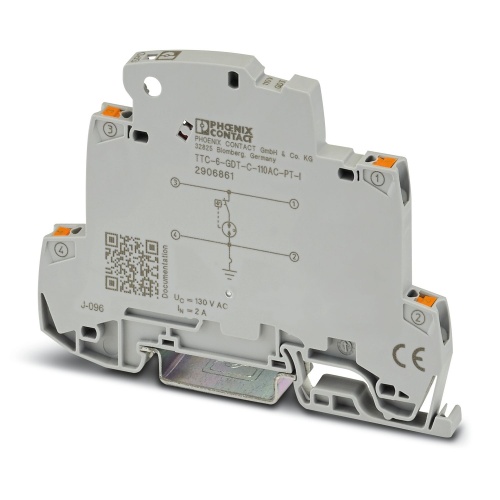

Phoenix Contact 2906861 Surge protection device TTC-6-GDT-C-110AC-PT-I
Normally In Stock
Code: 71692
TTC-6-GDT-C-110AC-PT-I Phoenix 2906861 Surge protection for measurement and control technology 110 VAC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$35.83
Sale Price
$29.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2906861 A surge protector designed for safety-critical applications features coarse surge protection and an integrated status indicator, specifically intended for use on signals connected to a grounded reference potential, and can be utilized in systems requiring SIL 3 level of redundancy.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Push-In Connection
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
30 Volt
Nominal Discharge Current
2 Ka
Surge Protector Line Voltage
110 Volt
Component
Surge Protection Device
Features
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
Downloads
Phoenix 2906861 Application Note English.pdfPhoenix 2906861 CAD data International.dxfPhoenix 2906861 CAD data International.pdfPhoenix 2906861 CAD data International.stpPhoenix 2906861 Certification International-2.pdfPhoenix 2906861 Certification International.pdfPhoenix 2906861 Flyer English-2.pdfPhoenix 2906861 Flyer English.pdfPhoenix 2906861 Manufacturers declaration English.pdfPhoenix 2906861 Manufacturers declaration International.pdfPhoenix 2906861 Product Information English.pdfPhoenix 2906861 Surge Protection English.pdfPhoenix 2906861 Tender Text English.zip
