Code: 71686
Phoenix Contact 2906807 Surge protection device TTC-6-2XTVSD-12DC-PT
Normally In Stock
TTC-6-2XTVSD-12DC-PT Phoenix 2906807 Surge protection for measurement and control technology 12 VDC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$87.91
Sale Price
$73.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

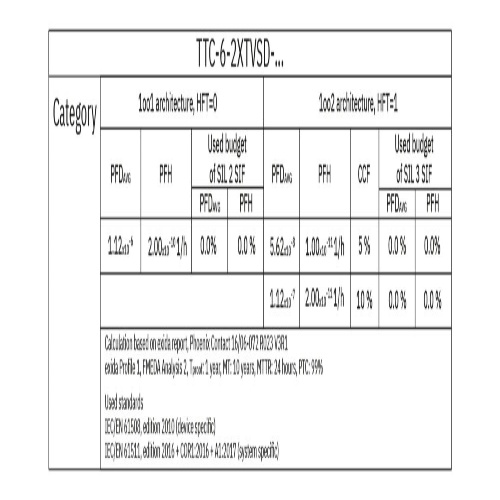

Phoenix Contact 2906807 Fine surge protection for connecting two signal wires with a shared ground reference is suitable for use in critical applications requiring SIL 3 level safety, providing reliable protection against sudden spikes and surges that could compromise the integrity of the circuit.
Specifications
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Push-In Connection
Surge Protector Line Voltage
12 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
30 Volt
Nominal Discharge Current
5 Ka
Component
Surge Protection Device
Features
Quick and tool-free installation of surge protective devices, thanks to Push-in connection technology
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
