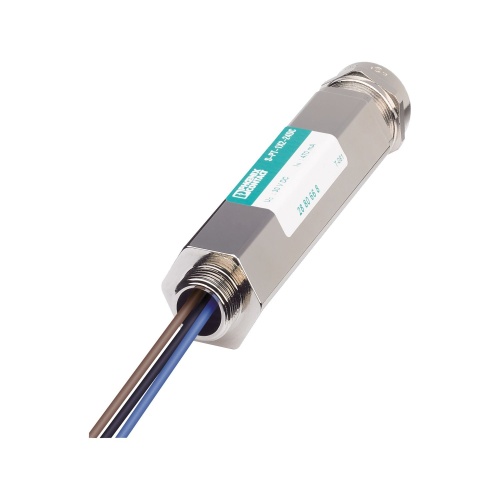

Phoenix Contact 2882569 Surge protection device S-PT-1X2-24DC-1/2"
Normally In Stock
Code: 71679
S-PT-1X2-24DC-1/2" Phoenix 2882569 Surge protection for measurement and control technology 24 VDC Screw connection,Screw terminal blocks,Connection line Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$311.95
Sale Price
$259.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

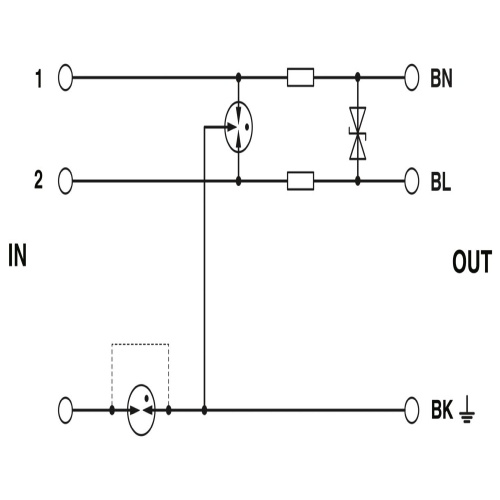

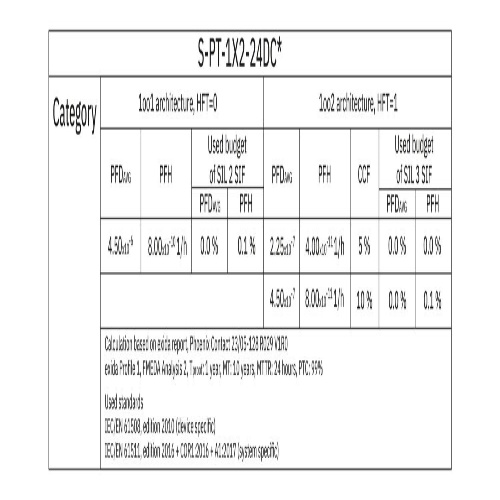

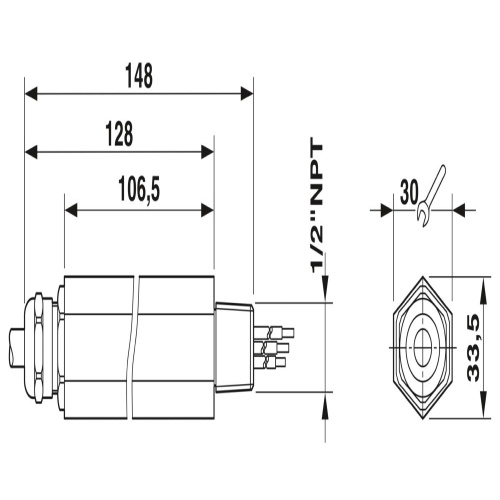

Phoenix Contact 2882569 The IP67 screw-on module for measuring sensors features a protective circuit that includes two stages of protection, as well as direct mounting capabilities via a 1/2" NPT outer thread and a cable gland for the signal line, making it suitable for use in safety-related circuits up to SIL 3 and compatible with HART systems.
Specifications
Manufacturer
Phoenix Contact
Surge Protector Line Voltage
24 Volt
Component
Surge Protection Device
Features
Versatile in use with universal protective circuit
Use under extreme ambient conditions with robust design
Easiest field mounting with standardized thread
Downloads
Phoenix 2882569 CAD data International.dxfPhoenix 2882569 Flyer English.pdfPhoenix 2882569 Manufacturers declaration English.pdfPhoenix 2882569 Manufacturers declaration International.pdfPhoenix 2882569 Package Slip International.pdfPhoenix 2882569 Software International.zipPhoenix 2882569 Surge Protection English.pdfPhoenix 2882569 Tender Text English.zip
