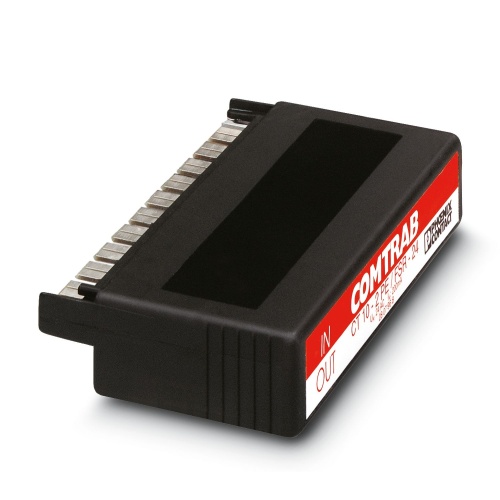

Phoenix Contact 2807968 Surge protection plug CT 10-2PE/FSR-24
Normally In Stock
Code: 71666
CT 10-2PE/FSR-24 Phoenix 2807968 Surge protection for measurement and control technology 24 VDC can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips,COMTRAB plug-in system Surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$878.82
Sale Price
$732.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

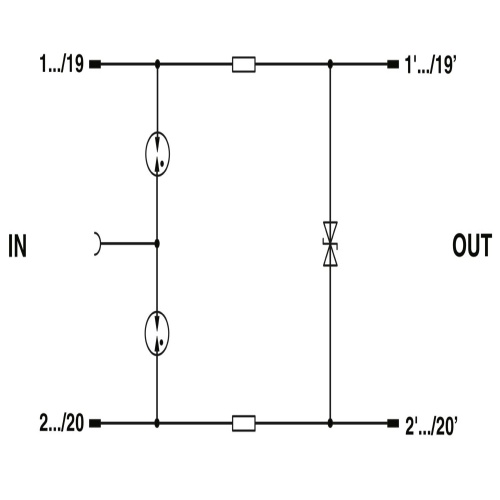

Phoenix Contact 2807968 The LSA-PLUS plug COMTRAB CT 10 features a combination of coarse and fine surge protection, along with a decoupling resistor, designed to support ten floating signal circuits. This plug operates at a nominal voltage of 24V DC and is available in version 10 with double wires.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C3
Arrester Class according to IEC
B2
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Nominal Discharge Current
350 Amp
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Information Technology
Maximum Continous Voltage
5.2 Volt
Component
Surge Protection Plug
Features
Space-saving due to compact design
Flexible fields of application with modular protective plug
Can be used in LSA-PLUS disconnect and control strips or CT-TERMIBLOCK via adapted connection technology
Downloads
Phoenix 2807968 CAD data International.dxfPhoenix 2807968 Flyer English.pdfPhoenix 2807968 Manufacturers declaration English.pdfPhoenix 2807968 Manufacturers declaration International.pdfPhoenix 2807968 Software International.zipPhoenix 2807968 Surge Protection English.pdfPhoenix 2807968 Tender Text English.zip
