Phoenix Contact 2807955 Surge protection plug CT 10-2PE/FS-24
Normally In Stock
Code: 71664
CT 10-2PE/FS-24 Phoenix 2807955 Surge protection for measurement and control technology 24 VDC can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips,COMTRAB plug-in system Surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$699.13
Sale Price
$582.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

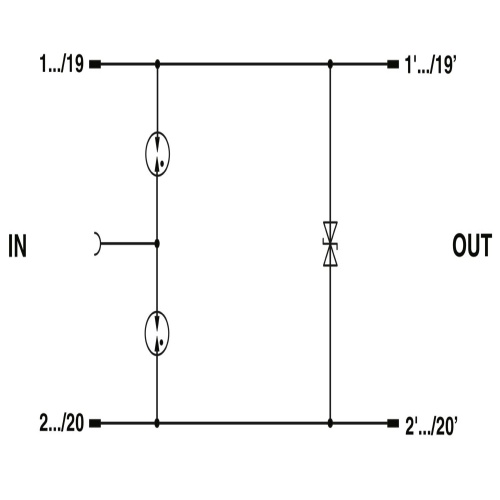

Phoenix Contact 2807955 The LSA-PLUS plug, model COMTRAB CT 10, features a combination of coarse and fine surge protection for its 10 floating signal circuits and operates at a nominal voltage of 24V DC, with a specific configuration utilizing two thin wires in version 10.
Specifications
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Push-In Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Information Technology
Maximum Continous Voltage
43 Volt
Nominal Discharge Current
10 Ka
Component
Surge Protection Plug
Features
Space-saving due to compact design
Flexible fields of application with modular protective plug
Can be used in LSA-PLUS disconnect and control strips or CT-TERMIBLOCK via adapted connection technology
Downloads
Phoenix 2807955 CAD data International.dxfPhoenix 2807955 Flyer English.pdfPhoenix 2807955 Manufacturers declaration English.pdfPhoenix 2807955 Manufacturers declaration International.pdfPhoenix 2807955 Software International.zipPhoenix 2807955 Surge Protection English.pdfPhoenix 2807955 Tender Text English.zip
