Code: 71662

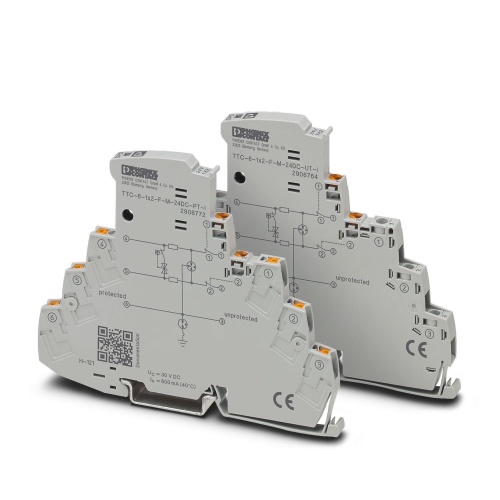

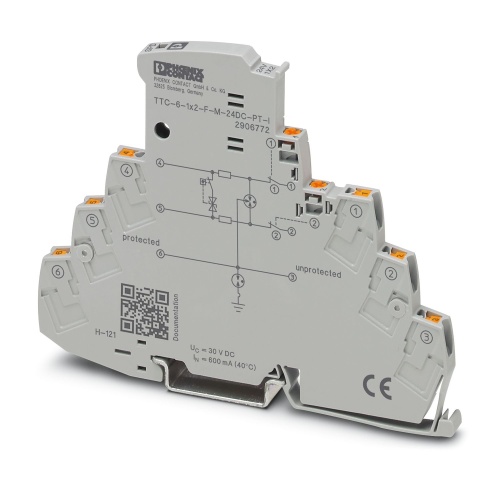

Phoenix Contact 2906772 Surge protection device TTC-6-1X2-F-M-24DC-PT-I
Normally In Stock
TTC-6-1X2-F-M-24DC-PT-I Phoenix 2906772 Surge protection for measurement and control technology 24 VDC Push-in connection Surge protection device Surge Protection
Condition: New
CALL FOR LEAD TIME$164.45
Sale Price
$137.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

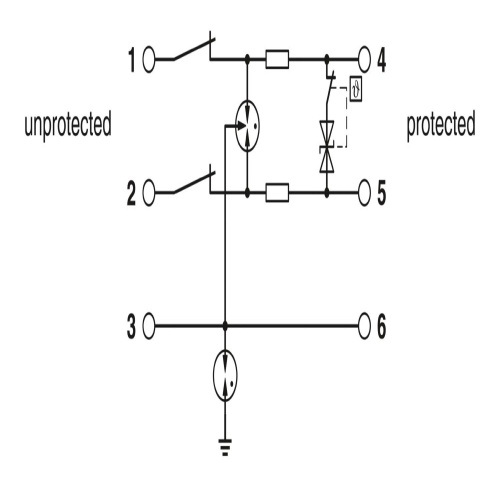

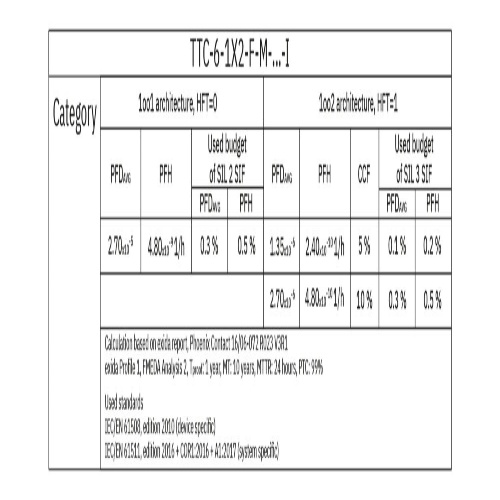

Phoenix Contact 2906772 A surge protection unit features an integrated status indicator and knife disconnection for a specific type of signal circuit, such as a 0-4 mA to 20 mA current loop. It also includes indirect grounding via a gas discharge tube, making it compatible with HART systems, and can be used in safety-critical applications up to SIL 3 levels.
Specifications
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Push-In Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
30 Volt
Nominal Discharge Current
0.5 Ka
Component
Surge Protection Device
Features
Space-saving and cost-saving with a narrow overall width of just 6 mm
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Signal circuits easily interrupted for maintenance work, thanks to vertical knife disconnection
Downloads
Phoenix 2906772 Application Note English.pdfPhoenix 2906772 CAD data International.dxfPhoenix 2906772 CAD data International.pdfPhoenix 2906772 CAD data International.stpPhoenix 2906772 Certification International-2.pdfPhoenix 2906772 Certification International.pdfPhoenix 2906772 Flyer English-2.pdfPhoenix 2906772 Flyer English.pdfPhoenix 2906772 Manufacturers declaration English.pdfPhoenix 2906772 Manufacturers declaration International.pdfPhoenix 2906772 Product Information English.pdfPhoenix 2906772 Surge Protection English.pdfPhoenix 2906772 Tender Text English.zip
