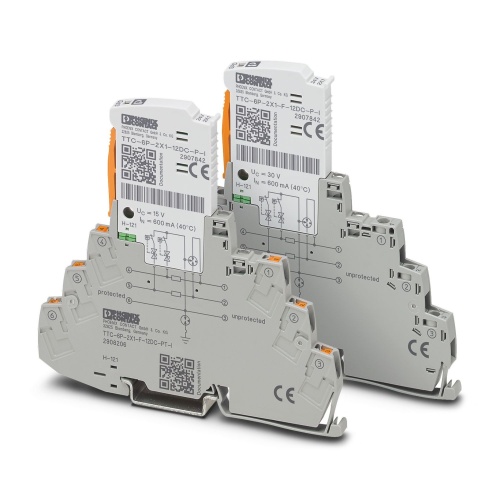

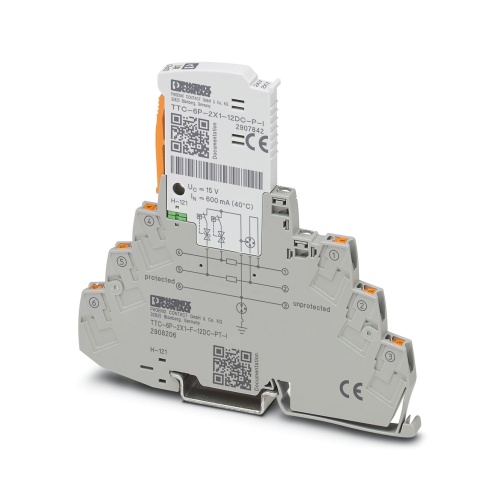

Phoenix Contact 2908206 Surge protection device TTC-6P-2X1-F-12DC-PT-I
Normally In Stock
Code: 71655
TTC-6P-2X1-F-12DC-PT-I Phoenix 2908206 Surge protection for measurement and control technology 12 VDC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$202.42
Sale Price
$168.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

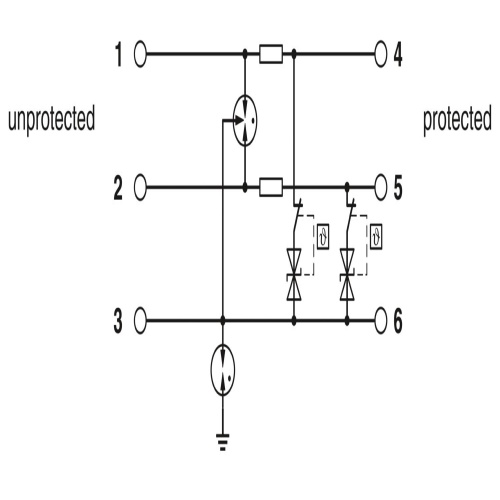

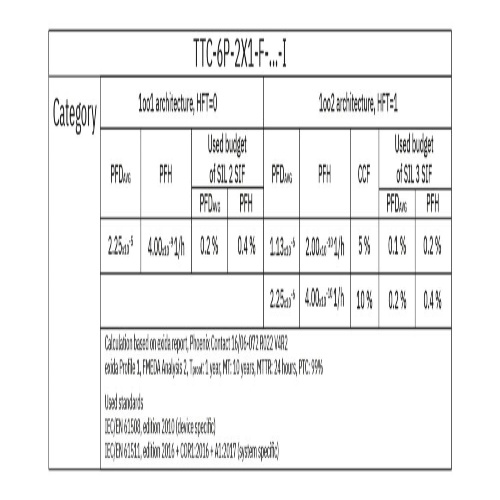

Phoenix Contact 2908206 A surge protection system typically comprises a protective plug and a base element that integrate a status indicator for signals with a common reference potential, such as digital inputs and outputs. The system uses indirect grounding through a gas discharge tube and can be utilized in safety-critical applications up to SIL 3 levels of integrity.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Fault Warning
Multi-Stage
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Push-In Connection
Surge Protector Line Voltage
12 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
30 Volt
Nominal Discharge Current
10 Ka
Component
Surge Protection Device
Features

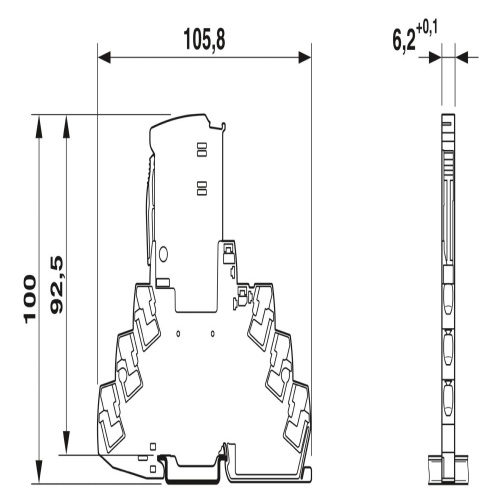

Space-saving and cost-saving with a narrow overall width of just 6 mm
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
