Code: 71651

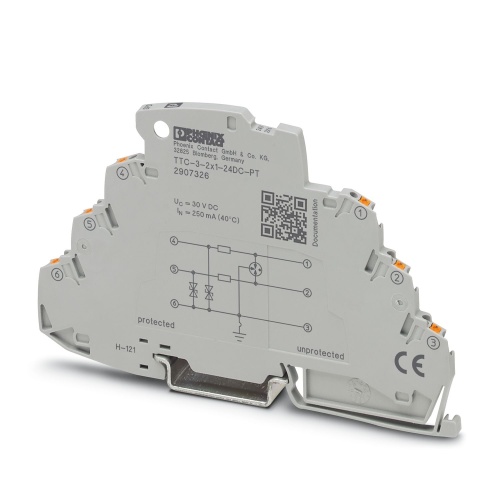

Phoenix Contact 2907326 Surge protection device TTC-3-2X1-24DC-PT
Normally In Stock
TTC-3-2X1-24DC-PT Phoenix 2907326 Surge protection for measurement and control technology 24 VDC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$165.29
Sale Price
$137.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

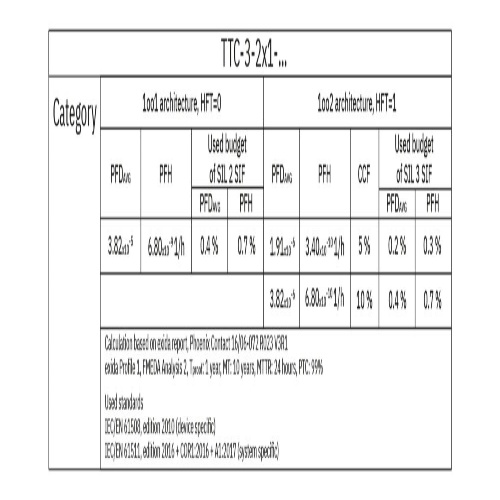

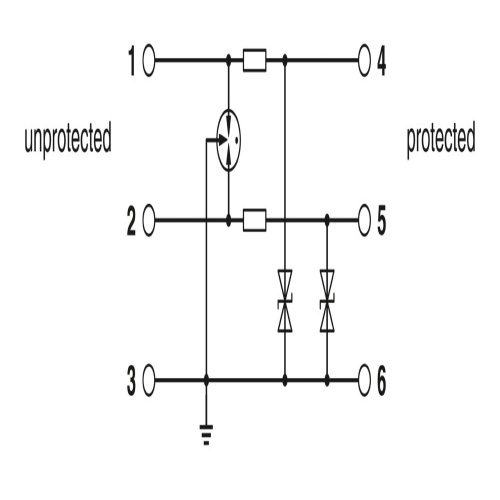

Phoenix Contact 2907326 Surge protection can be applied to two signal wires that share a common reference potential, such as digital input/output connections. This type of protection is suitable for use in safety-critical applications and can provide up to SIL 3 level of protection.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
250 Volt
Nominal Discharge Current
3 Ka
Component
Surge Protection Device
Features

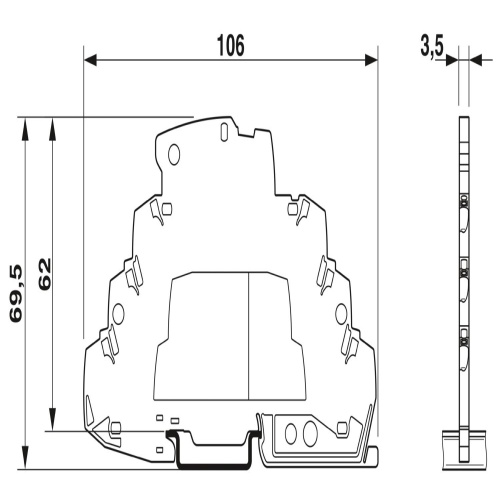

Extremely space-saving installation with the narrowest overall width of just 3.5 mm
Cost-optimized with tailored product features
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Downloads
Phoenix 2907326 Application Note English.pdfPhoenix 2907326 CAD data International.dxfPhoenix 2907326 CAD data International.pdfPhoenix 2907326 CAD data International.stpPhoenix 2907326 Certification International-2.pdfPhoenix 2907326 Certification International.pdfPhoenix 2907326 Flyer English-2.pdfPhoenix 2907326 Flyer English.pdfPhoenix 2907326 Manufacturers declaration English.pdfPhoenix 2907326 Manufacturers declaration International.pdfPhoenix 2907326 Product Information English.pdfPhoenix 2907326 Surge Protection English.pdfPhoenix 2907326 Tender Text English.zip
Code: 71651
Phoenix Contact 2907326 Surge protection device TTC-3-2X1-24DC-PT
$165.29
Sale Price
$137.74
