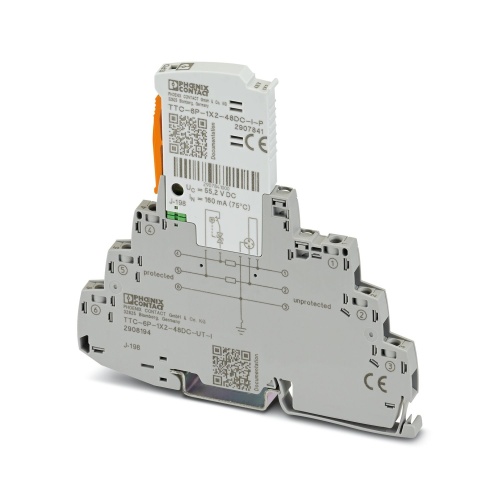

Phoenix Contact 2908194 Surge protection device TTC-6P-1X2-48DC-UT-I
Normally In Stock
Code: 71640
TTC-6P-1X2-48DC-UT-I Phoenix 2908194 Surge protection for measurement and control technology 48 VDC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$195.84
Sale Price
$163.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

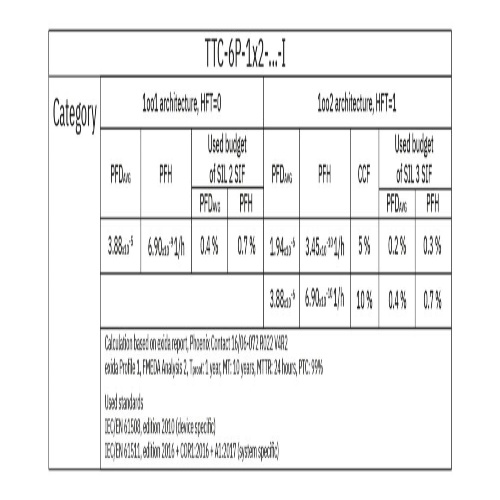

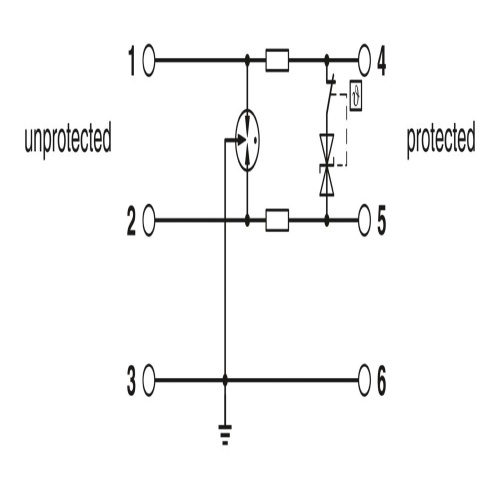

Phoenix Contact 2908194 A surge protection system consists of a protective plug and base element that combine to form a 2-wire floating signal circuit, featuring an integrated status indicator, which can be utilized in safety-critical applications rated up to SIL level 3.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Arrester Class according to IEC
B2
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
48 Volt
Maximum Continous Voltage
60 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Nominal Discharge Current
5 Ka
Component
Surge Protection Device
Features

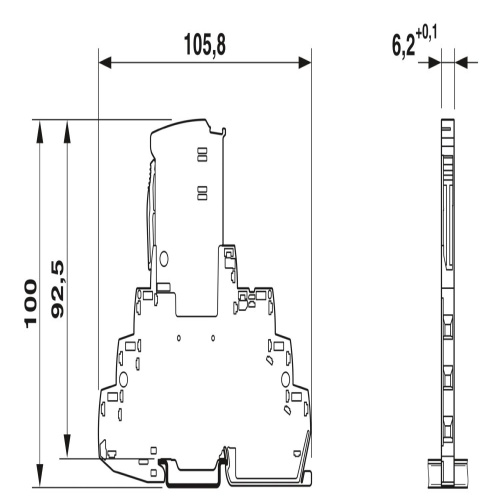

Space-saving and cost-saving with a narrow overall width of just 6 mm
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
